SKU: UCFCE210-SNR

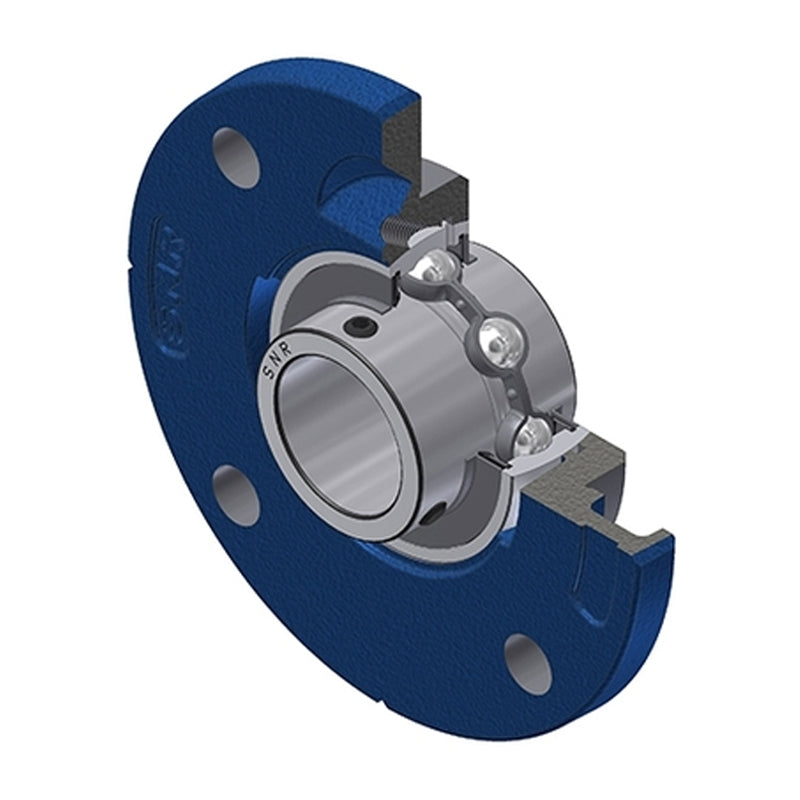

SNR UCFCE210 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert - Allow 2-3 Days
SNR UCFCE210 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert - Allow 2-3 Days
Regular price
$73.65
ex VAT
Regular price
Sale price
$73.65
ex VAT
In stock
Price Break
3+
$54.87
4+
$52.65
9+
$51.54
19+
$49.88
49+
$48.77
99+
$46.00
499+
$38.79
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCFCE
- Pitch Circle Diameter:
- 135mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 25.5mm |
| A1 | 13mm |
| A2 | 31.6mm |
| A3 | 3mm |
| B | 51.6mm |
| e | -1mm |
| H3 | 110mm |
| J | 135mm |
| L | 165mm |
| N | 14mm |
| S | 19mm |
| G | M8x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 2.2 kg |
