SKU: UCFCE211-SNR

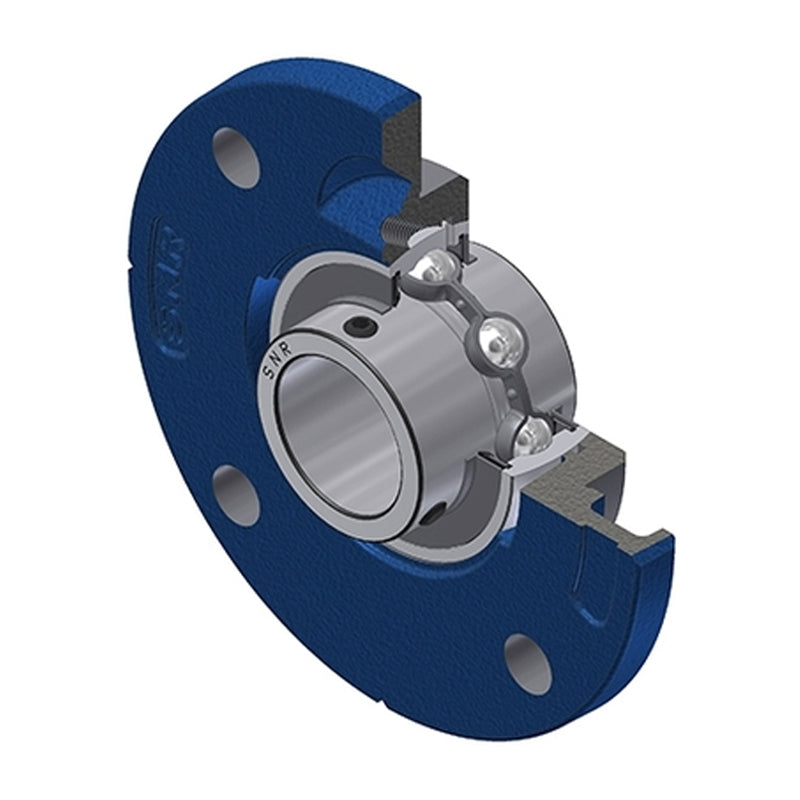

SNR UCFCE211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Insert - Allow 2-3 Days
SNR UCFCE211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Insert - Allow 2-3 Days
Regular price
$103.02
ex VAT
Regular price
Sale price
$103.02
ex VAT
In stock
Price Break
3+
$76.74
4+
$73.64
9+
$72.09
19+
$69.77
49+
$68.22
99+
$64.34
499+
$54.26
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCFCE
- Pitch Circle Diameter:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| A | 27.5mm |
| A1 | 15mm |
| A2 | 33.4mm |
| A3 | 3mm |
| B | 55.6mm |
| H3 | 125mm |
| J | 150mm |
| L | 185mm |
| N | 18mm |
| S | 22.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.13 kg |
