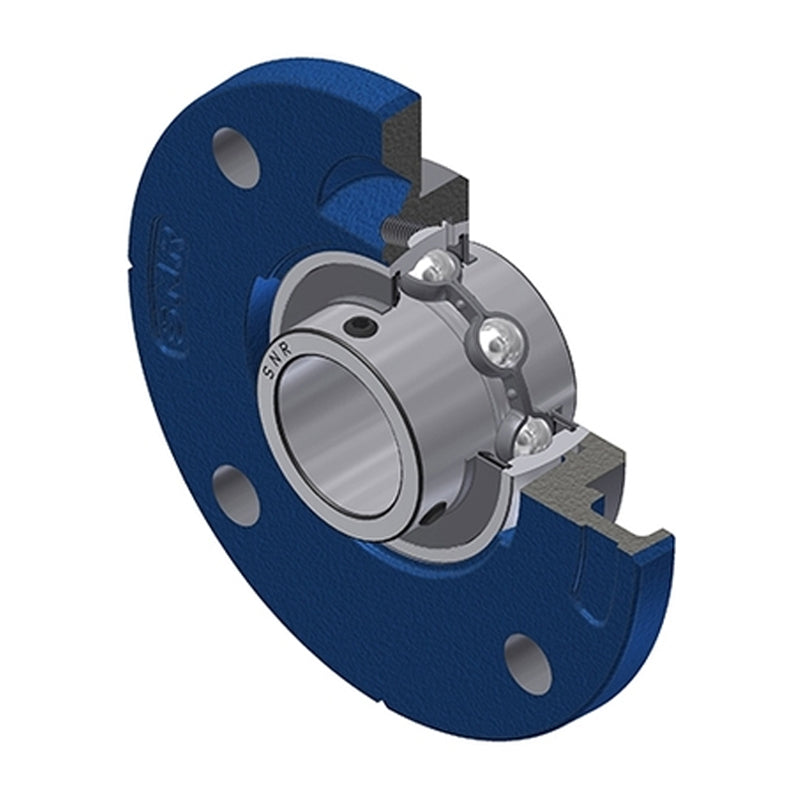

• SNR UCFCE212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFCE212-SNR

SNR UCFCE212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert - Allow 2-3 Days

SNR UCFCE212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert - Allow 2-3 Days
$88.23 ex VAT
$88.23 ex VAT
Sale Sold out

In stock

Price Break
3+ $59.10
4+ $55.78
9+ $55.11
19+ $54.45
49+ $53.79
99+ $53.12
499+ $49.80
999+ $49.14
1999+ $48.47
2999+ $47.81
4999+ $46.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
UCFCE
Pitch Circle Diameter:
160mm
Technical
--- Dimensions
Shaft diameter 60mm
A 30.5mm
A1 16mm
A2 38.7mm
A3 3mm
B 65.1mm
e -1mm
H3 135mm
J 160mm
L 195mm
N 18mm
S 25.4mm
G R1/8″
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.86 kg
