SKU: UCFCE215-SNR

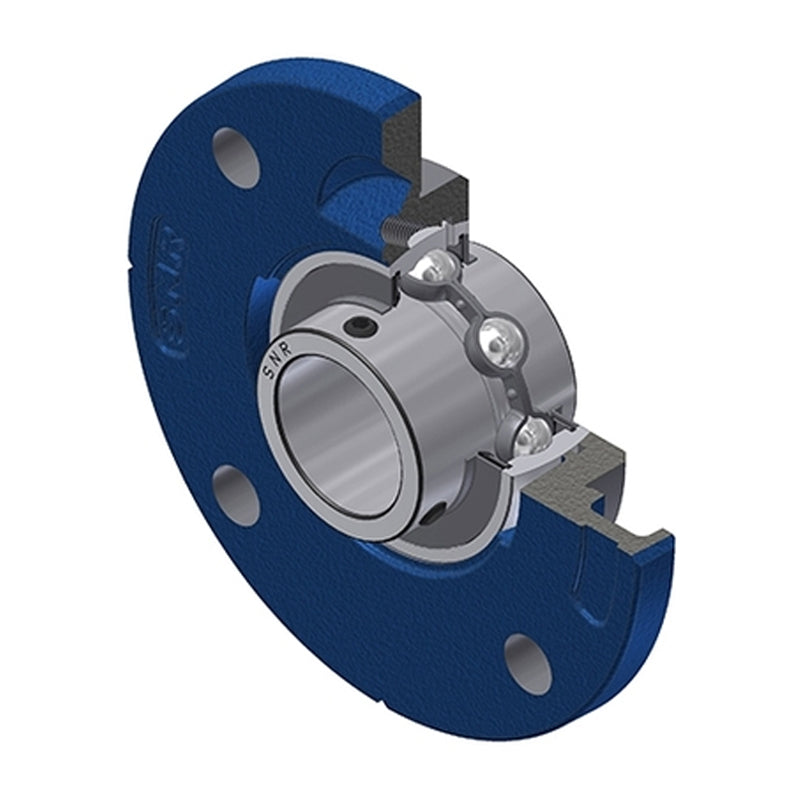

SNR UCFCE215 Metric Four Bolt Cast Iron Round Flanged Housing with 75mm Insert - Allow 2-3 Days
SNR UCFCE215 Metric Four Bolt Cast Iron Round Flanged Housing with 75mm Insert - Allow 2-3 Days
Regular price
$170.76
ex VAT
Regular price
Sale price
$170.76
ex VAT
In stock
Price Break
3+
$114.38
4+
$107.96
9+
$106.67
19+
$105.39
49+
$104.10
99+
$102.82
499+
$96.39
999+
$95.10
1999+
$93.82
2999+
$92.53
4999+
$89.96
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCFCE
- Pitch Circle Diameter:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 75mm |
| A | 33mm |
| A1 | 18mm |
| A2 | 44.5mm |
| A3 | 6mm |
| B | 77.8mm |
| H3 | 160mm |
| J | 184mm |
| L | 220mm |
| N | 18mm |
| S | 33.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 66 kN |
| Static load C0 | 49.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 5.45 kg |
