SKU: UCFCX08-108D1-NTN

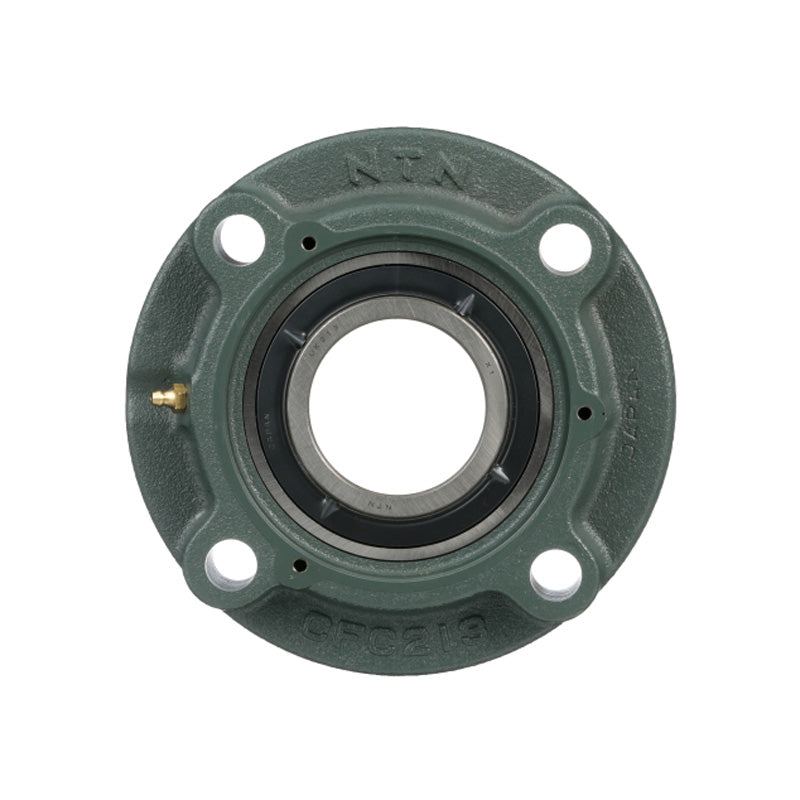

NTN UCFCX08-108D1 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-1/2 inch Insert - Allow 2-3 Days
NTN UCFCX08-108D1 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-1/2 inch Insert - Allow 2-3 Days
Regular price
$88.34
ex VAT
Regular price
Sale price
$88.34
ex VAT
In stock
Price Break
3+
$65.82
4+
$63.16
9+
$61.83
19+
$59.83
49+
$58.50
99+
$55.18
499+
$46.54
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UCFCX
- Pitch Circle Diameter:
- 3-3/32 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-1/2 inch |
| L | 5-1/4 inch |
| J | 4-3/8 inch |
| (J<sub>1</sub>) | 3-3/32 inch |
| A<sub>2</sub> | 23/64 inch |
| N | 15/32 inch |
| A<sub>3</sub> | 7/16 inch |
| A<sub>1</sub> | 1-1/32 inch |
| A | 1-29/64 inch |
| H<sub>3</sub> | 3.62 inch |
| A<sub>0</sub> | 1-31/32 inch |
| B | 1.937 inch |
| S | 0.748 inch |
| F (Min.) | 2-15/32 inch |
| Fixing bolt | 3/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 36 kN |
| Static load C<sub>0r</sub> | 20.4 kN |
| Fatigue load limit C<sub>u</sub> | 1.6 kN |
| --- | Unit information |
| Mass | 4.4 lbs |
