SKU: UCFCX10D1-NTN

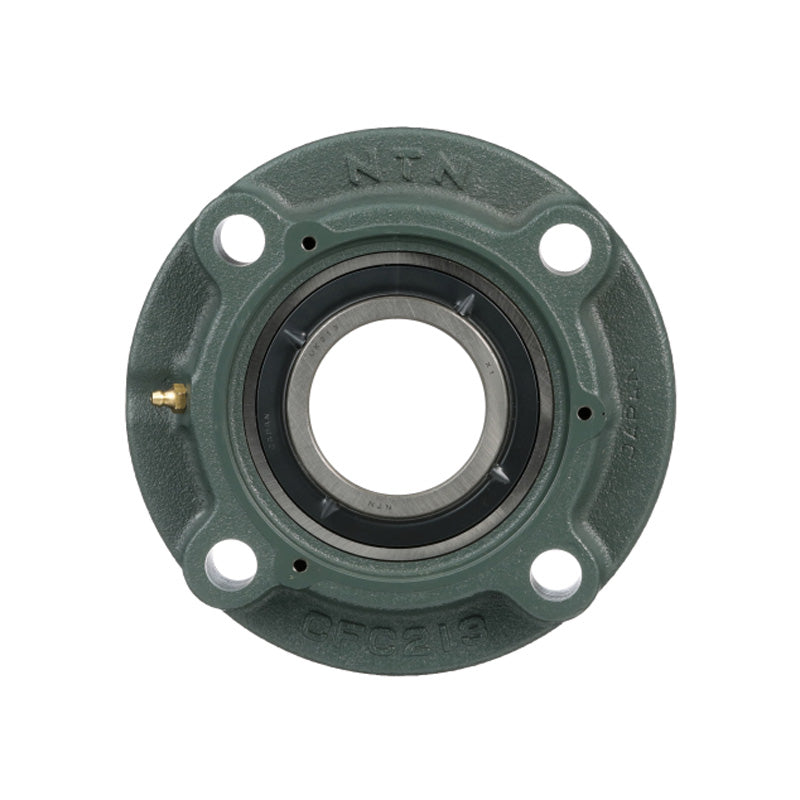

NTN UCFCX10D1 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert - Allow 2-3 Days
NTN UCFCX10D1 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert - Allow 2-3 Days
Regular price
$77.40
ex VAT
Regular price
Sale price
$77.40
ex VAT
In stock
Price Break
3+
$51.84
4+
$48.93
9+
$48.35
19+
$47.77
49+
$47.18
99+
$46.60
499+
$43.69
999+
$43.11
1999+
$42.52
2999+
$41.94
4999+
$40.78
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 96.2mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| L | 162mm |
| J | 136mm |
| (J<sub>1</sub>) | 96.2mm |
| A<sub>2</sub> | 7mm |
| N | 14mm |
| A<sub>3</sub> | 16mm |
| A<sub>1</sub> | 25mm |
| A | 41mm |
| H<sub>3</sub> | 118mm |
| A<sub>0</sub> | 56.4mm |
| B | 55.6mm |
| S | 22.2mm |
| F (Min.) | 75mm |
| Fixing bolt | M12 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 48 kN |
| Static load C<sub>0r</sub> | 29.2 kN |
| Fatigue load limit C<sub>u</sub> | 2.29 kN |
| --- | Unit information |
| Mass | 3.1 kg |
