SKU: UCFCX11D1-NTN

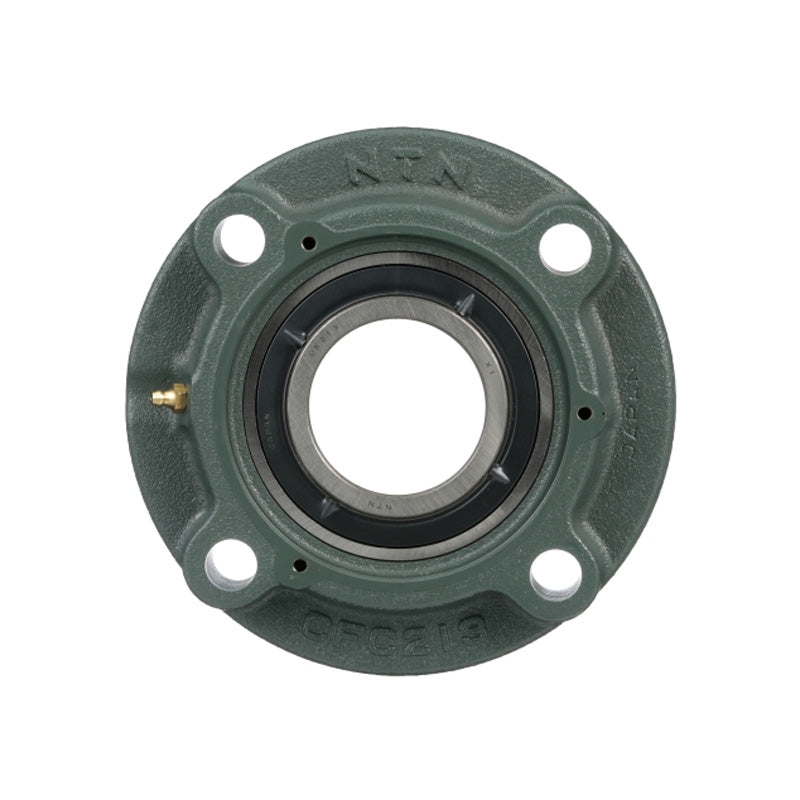

NTN UCFCX11D1 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Insert - Allow 2-3 Days
NTN UCFCX11D1 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Insert - Allow 2-3 Days
Regular price
$89.47
ex VAT
Regular price
Sale price
$89.47
ex VAT
In stock
Price Break
3+
$59.93
4+
$56.57
9+
$55.89
19+
$55.22
49+
$54.55
99+
$53.87
499+
$50.51
999+
$49.83
1999+
$49.16
2999+
$48.48
4999+
$47.14
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 107.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| L | 180mm |
| J | 152mm |
| (J<sub>1</sub>) | 107.5mm |
| A<sub>2</sub> | 4mm |
| N | 16mm |
| A<sub>3</sub> | 22mm |
| A<sub>1</sub> | 26mm |
| A | 48mm |
| H<sub>3</sub> | 127mm |
| A<sub>0</sub> | 65.7mm |
| B | 65.1mm |
| S | 25.4mm |
| F (Min.) | 83mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58 kN |
| Static load C<sub>0r</sub> | 36 kN |
| Fatigue load limit C<sub>u</sub> | 2.83 kN |
| --- | Unit information |
| Mass | 4.2 kg |
