SKU: UCFCX12D1-NTN

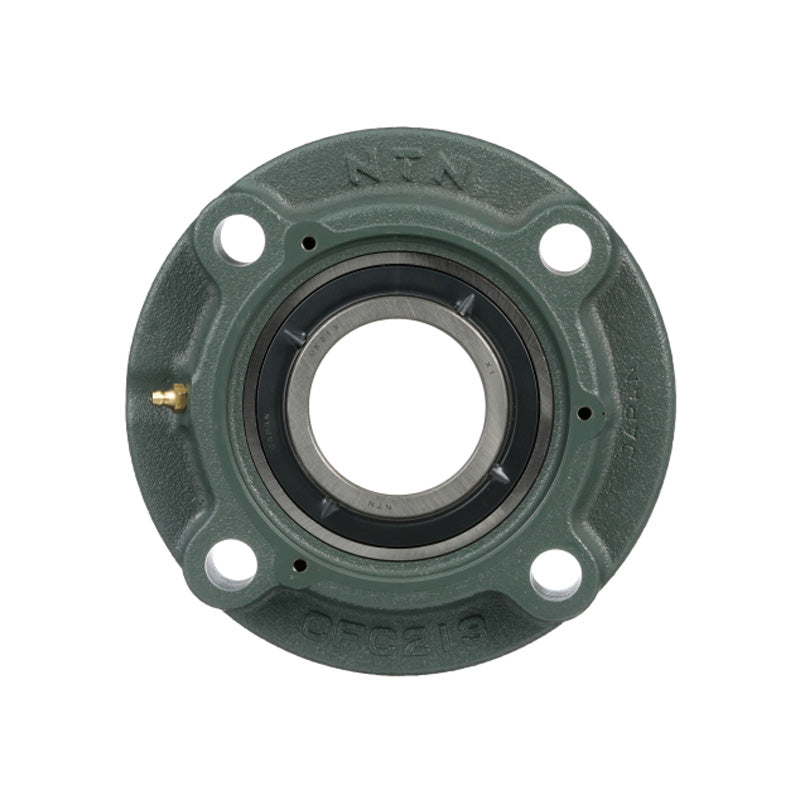

NTN UCFCX12D1 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert - Allow 2-3 Days
NTN UCFCX12D1 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert - Allow 2-3 Days
Regular price
$116.53
ex VAT
Regular price
Sale price
$116.53
ex VAT
In stock
Price Break
3+
$78.05
4+
$73.67
9+
$72.79
19+
$71.91
49+
$71.04
99+
$70.16
499+
$65.78
999+
$64.90
1999+
$64.02
2999+
$63.14
4999+
$61.39
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 116.7mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| L | 194mm |
| J | 165mm |
| (J<sub>1</sub>) | 116.7mm |
| A<sub>2</sub> | 11mm |
| N | 16mm |
| A<sub>3</sub> | 20mm |
| A<sub>1</sub> | 33mm |
| A | 53mm |
| H<sub>3</sub> | 140mm |
| A<sub>0</sub> | 70.7mm |
| B | 65.1mm |
| S | 25.4mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 63.5 kN |
| Static load C<sub>0r</sub> | 40 kN |
| Fatigue load limit C<sub>u</sub> | 3.15 kN |
| --- | Unit information |
| Mass | 5.5 kg |
