SKU: UCFCX13D1-NTN

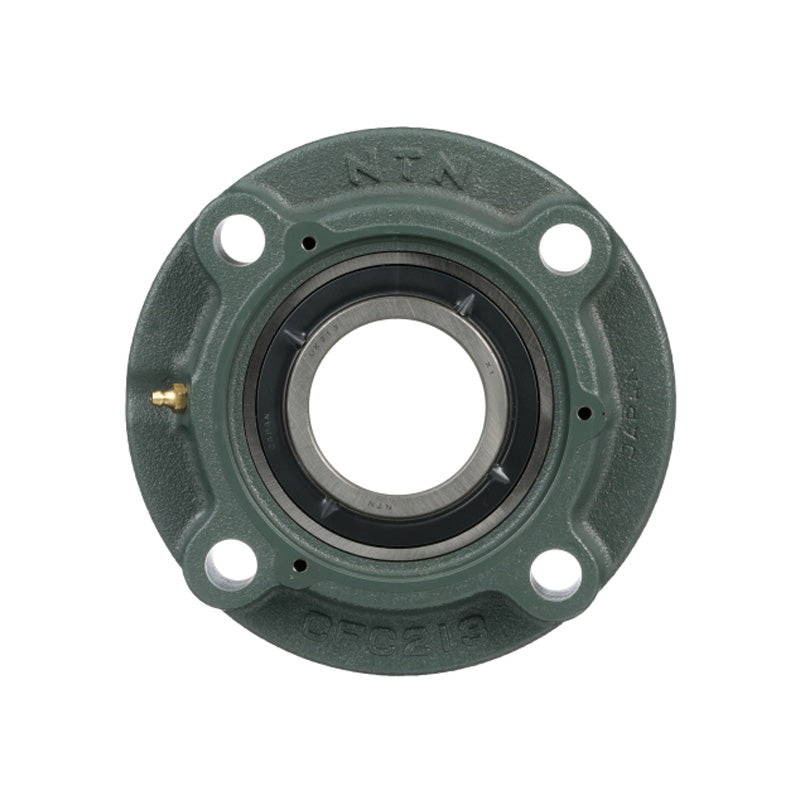

NTN UCFCX13D1 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert - Allow 2-3 Days
NTN UCFCX13D1 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert - Allow 2-3 Days
Regular price
$134.12
ex VAT
Regular price
Sale price
$134.12
ex VAT
In stock
Price Break
3+
$89.84
4+
$84.79
9+
$83.78
19+
$82.77
49+
$81.76
99+
$80.75
499+
$75.71
999+
$74.70
1999+
$73.69
2999+
$72.68
4999+
$70.66
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 116.7mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 65mm |
| L | 194mm |
| J | 165mm |
| (J<sub>1</sub>) | 116.7mm |
| A<sub>2</sub> | 11mm |
| N | 16mm |
| A<sub>3</sub> | 20mm |
| A<sub>1</sub> | 33mm |
| A | 53mm |
| H<sub>3</sub> | 140mm |
| A<sub>0</sub> | 75.4mm |
| B | 74.6mm |
| S | 30.2mm |
| F (Min.) | 94mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 69 kN |
| Static load C<sub>0r</sub> | 44 kN |
| Fatigue load limit C<sub>u</sub> | 3.45 kN |
| --- | Unit information |
| Mass | 5.7 kg |
