SKU: UCFCX14D1-NTN

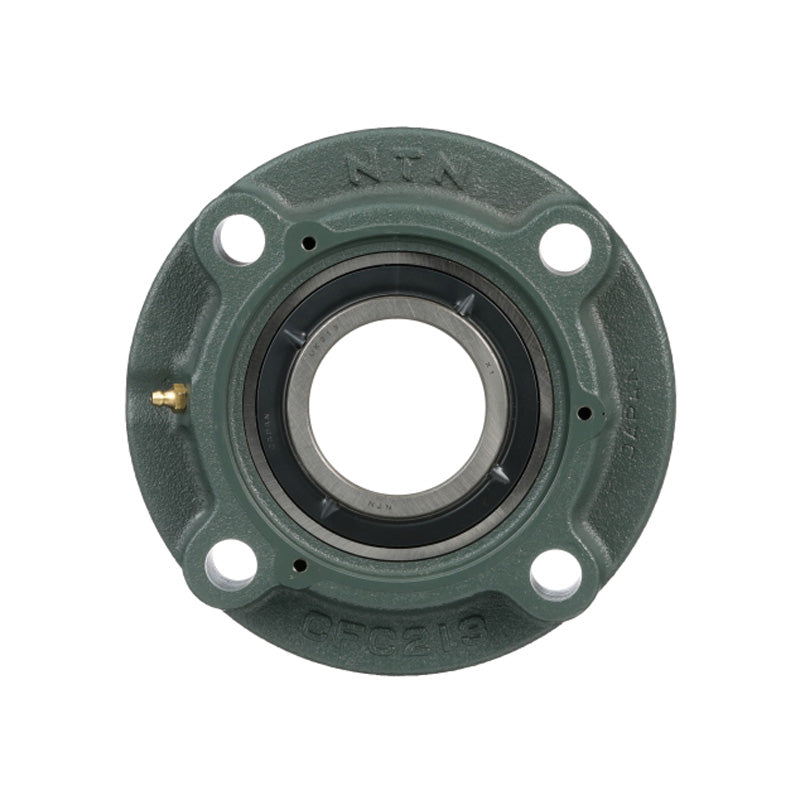

NTN UCFCX14D1 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Insert - Allow 2-3 Days
NTN UCFCX14D1 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Insert - Allow 2-3 Days
Regular price
$142.91
ex VAT
Regular price
Sale price
$142.91
ex VAT
In stock
Price Break
3+
$95.73
4+
$90.35
9+
$89.27
19+
$88.20
49+
$87.12
99+
$86.05
499+
$80.67
999+
$79.59
1999+
$78.52
2999+
$77.44
4999+
$75.29
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 134.4mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 70mm |
| L | 222mm |
| J | 190mm |
| (J<sub>1</sub>) | 134.4mm |
| A<sub>2</sub> | 14mm |
| N | 19mm |
| A<sub>3</sub> | 20mm |
| A<sub>1</sub> | 36mm |
| A | 56mm |
| H<sub>3</sub> | 164mm |
| A<sub>0</sub> | 78.5mm |
| B | 77.8mm |
| S | 33.3mm |
| F (Min.) | 100mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 73.5 kN |
| Static load C<sub>0r</sub> | 49.5 kN |
| Fatigue load limit C<sub>u</sub> | 3.8 kN |
| --- | Unit information |
| Mass | 7.3 kg |
