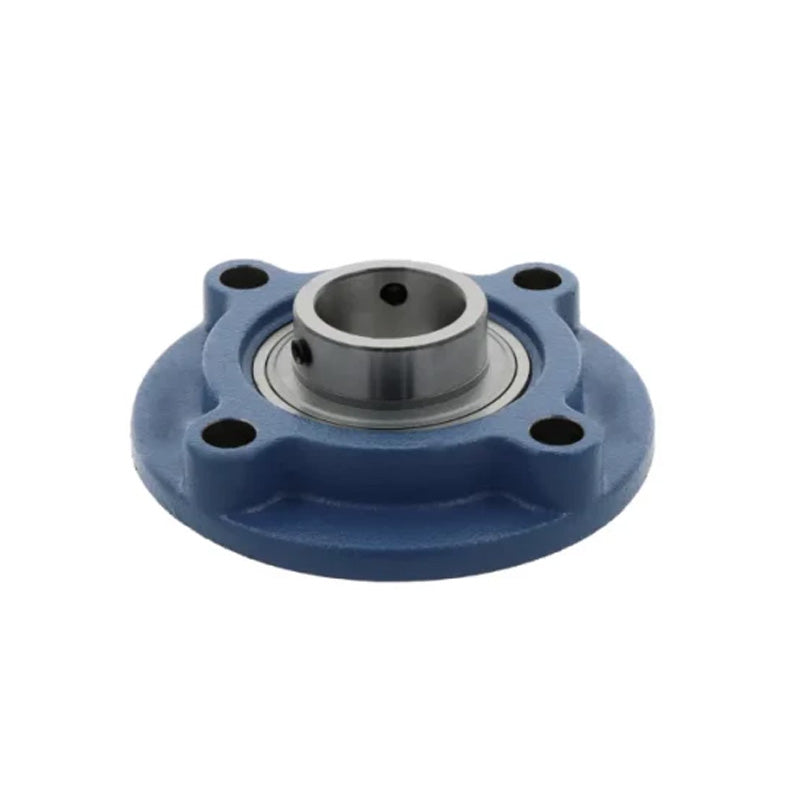

• UCFCX15-47 Imperial Four Bolt Cast Iron Round Flanged Housing with 2-15/16 inch Insert
1 1

SKU: UCFCX15-47

UCFCX15-47 Imperial Four Bolt Cast Iron Round Flanged Housing with 2-15/16 inch Insert

UCFCX15-47 Imperial Four Bolt Cast Iron Round Flanged Housing with 2-15/16 inch Insert
$207.28 ex VAT
$207.28 ex VAT
Sale Sold out

In stock

Price Break
3+ $138.84
4+ $131.04
9+ $129.48
19+ $127.92
49+ $126.36
99+ $124.80
499+ $117.00
999+ $115.44
1999+ $113.88
2999+ $112.32
4999+ $109.20

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
74.61mm = 2.937 (2-15/16) inch
Style:
UCFCX
Pitch Circle Diameter:
134.14mm = 5.281 (5-9/32) inch
Technical
d 2-15/16 inch
a 8-3/4 inch
p 7-31/64 inch
(e) 5-9/32 inch
i 15/32 inch
s 3/4 inch
j 55/64 inch
k 5/8 inch
g 1-3/8 inch
f 6.4567 inch
z 2-13/32 inch
B 3.252 inch
n 1.311 inch
Bolt size 5/8 inch
Bearing no UCX15-47
Housing no FCX15
Weight 7.2 kg
