SKU: UCFCX15D1-NTN

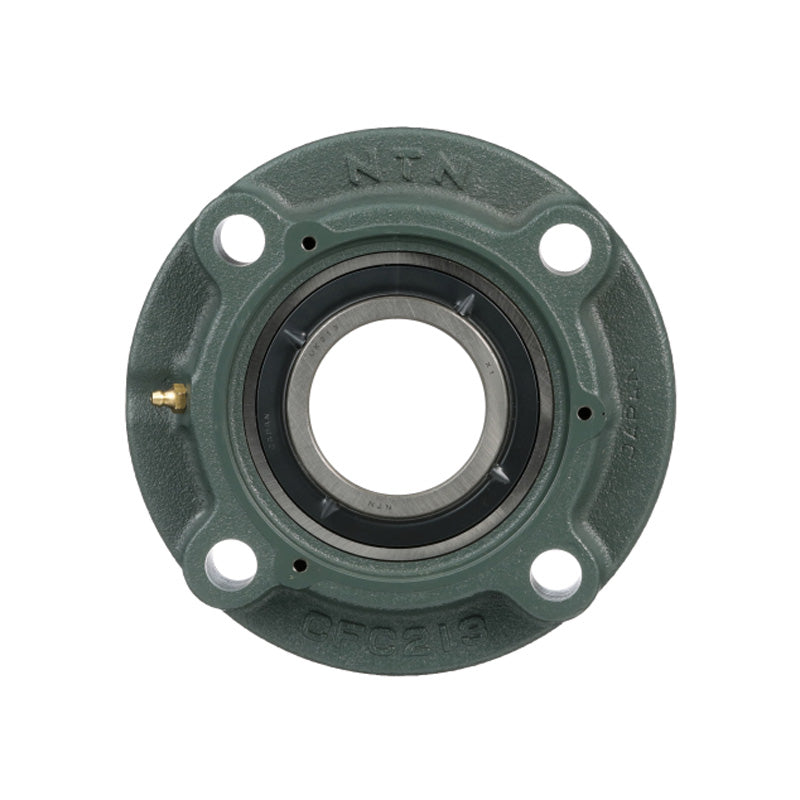

NTN UCFCX15D1 Metric Four Bolt Cast Iron Round Flanged Housing with 75mm Insert - Allow 2-3 Days
NTN UCFCX15D1 Metric Four Bolt Cast Iron Round Flanged Housing with 75mm Insert - Allow 2-3 Days
Regular price
$164.90
ex VAT
Regular price
Sale price
$164.90
ex VAT
In stock
Price Break
3+
$110.46
4+
$104.25
9+
$103.01
19+
$101.77
49+
$100.53
99+
$99.29
499+
$93.08
999+
$91.84
1999+
$90.60
2999+
$89.36
4999+
$86.88
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 134.4mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 75mm |
| L | 222mm |
| J | 190mm |
| (J<sub>1</sub>) | 134.4mm |
| A<sub>2</sub> | 12mm |
| N | 19mm |
| A<sub>3</sub> | 22mm |
| A<sub>1</sub> | 35mm |
| A | 57mm |
| H<sub>3</sub> | 164mm |
| A<sub>0</sub> | 83.3mm |
| B | 82.6mm |
| S | 33.3mm |
| F (Min.) | 105mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 80.5 kN |
| Static load C<sub>0r</sub> | 53 kN |
| Fatigue load limit C<sub>u</sub> | 3.95 kN |
| --- | Unit information |
| Mass | 8 kg |
