SKU: UCFCX20D1-NTN

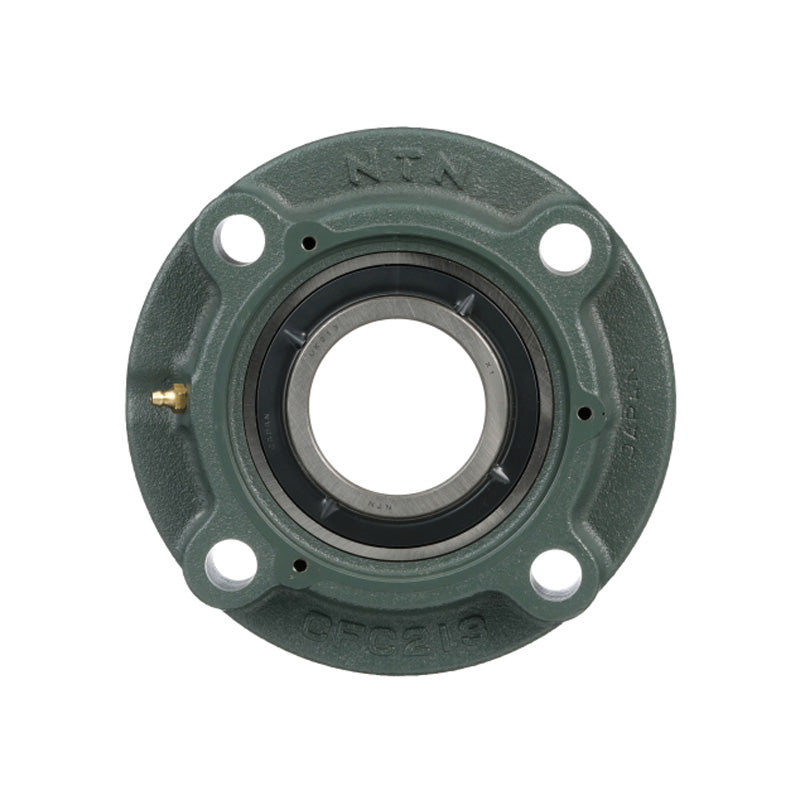

NTN UCFCX20D1 Metric Four Bolt Cast Iron Round Flanged Housing with 100mm Insert - Allow 2-3 Days
NTN UCFCX20D1 Metric Four Bolt Cast Iron Round Flanged Housing with 100mm Insert - Allow 2-3 Days
Regular price
$492.48
ex VAT
Regular price
Sale price
$492.48
ex VAT
In stock
Price Break
3+
$329.88
4+
$311.35
9+
$307.64
19+
$303.93
49+
$300.23
99+
$296.52
499+
$277.99
999+
$274.28
1999+
$270.57
2999+
$266.87
4999+
$259.46
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 168.3mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 100mm |
| L | 276mm |
| J | 238mm |
| (J<sub>1</sub>) | 168.3mm |
| A<sub>2</sub> | 22mm |
| N | 23mm |
| A<sub>3</sub> | 28mm |
| A<sub>1</sub> | 66mm |
| A | 94mm |
| H<sub>3</sub> | 206mm |
| A<sub>0</sub> | 118.3mm |
| B | 117.5mm |
| S | 49.2mm |
| F (Min.) | 139mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 147 kN |
| Static load C<sub>0r</sub> | 105 kN |
| Fatigue load limit C<sub>u</sub> | 6.75 kN |
| --- | Unit information |
| Mass | 18 kg |
