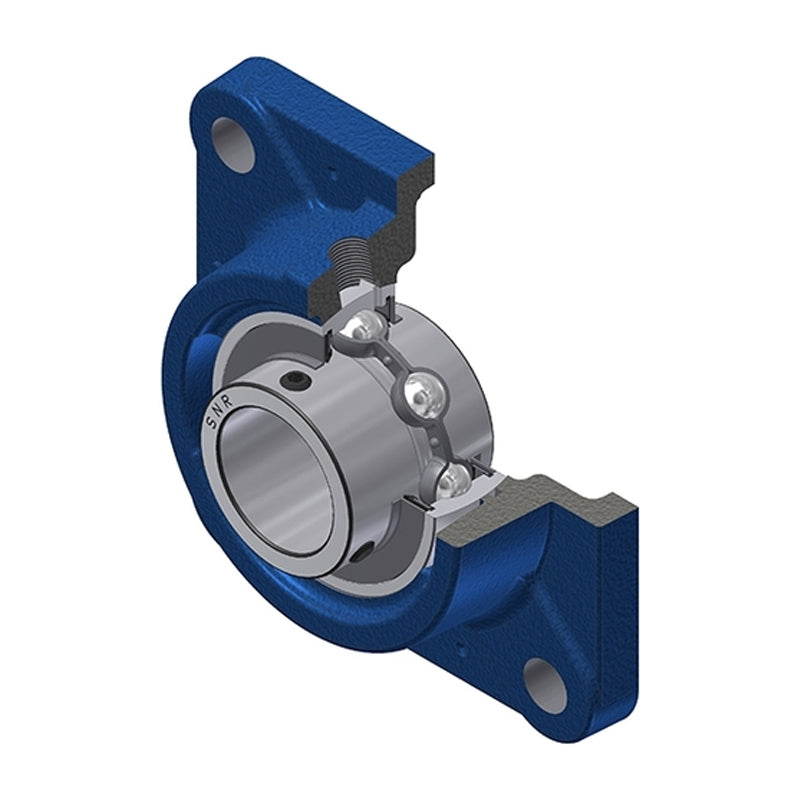

• SNR UCFE204 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFE204-SNR

SNR UCFE204 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Insert - Allow 2-3 Days

SNR UCFE204 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Insert - Allow 2-3 Days
$26.19 ex VAT
$26.19 ex VAT
Sale Sold out

In stock

Price Break
3+ $17.54
4+ $16.55
9+ $16.36
19+ $16.16
49+ $15.96
99+ $15.77
499+ $14.78
999+ $14.58
1999+ $14.39
2999+ $14.19
4999+ $13.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
UCFE
Bolt Hole Centres:
63.5mm
Technical
--- Dimensions
Shaft diameter 20mm
A 29.5mm
A1 10mm
A2 37.3mm
B 31mm
e 19mm
J 63.5mm
L 86mm
N 11.5mm
S 12.7mm
G R1/8″
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.67 kg
