SKU: UCFE205N-SNR

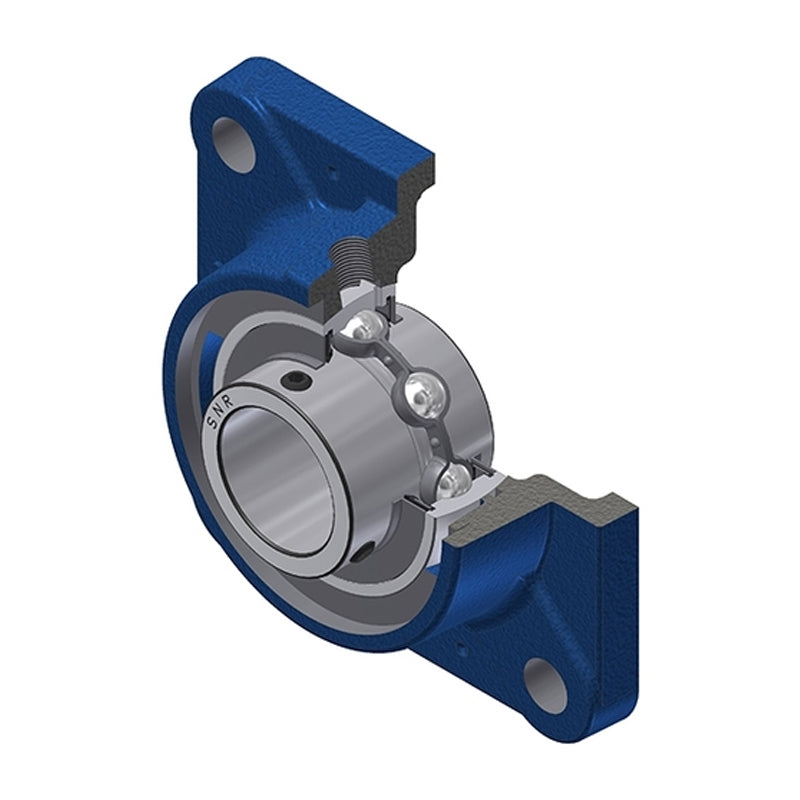

SNR UCFE205N Metric Four Bolt Square Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days

SNR UCFE205N Metric Four Bolt Square Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
$53.79 ex VAT
$53.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $36.03
4+ $34.01
9+ $33.60
19+ $33.20
49+ $32.79
99+ $32.39
499+ $30.36
999+ $29.96
1999+ $29.55
2999+ $29.15
4999+ $28.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
UCFE
Bolt Hole Centres:
70mm
Technical
--- Dimensions
Shaft diameter 25mm
A 30mm
A1 11mm
A2 38.7mm
B 34mm
e 19mm
J 70mm
L 95mm
N 11.5mm
S 14.3mm
G R1/8″
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.8 kg
