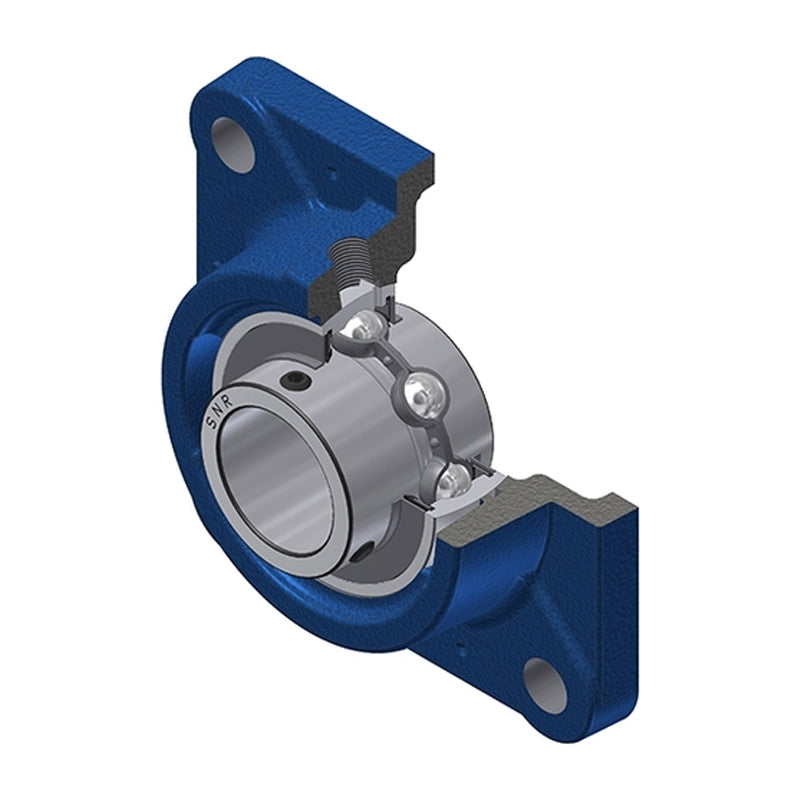

• SNR UCFE206-19 Imperial Four Bolt Square Cast Iron Flange Housing with 1-3/16 inch Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFE206-19-SNR

SNR UCFE206-19 Imperial Four Bolt Square Cast Iron Flange Housing with 1-3/16 inch Bore Insert - Allow 2-3 Days

SNR UCFE206-19 Imperial Four Bolt Square Cast Iron Flange Housing with 1-3/16 inch Bore Insert - Allow 2-3 Days
$34.15 ex VAT
$34.15 ex VAT
Sale Sold out

In stock

Price Break
3+ $22.88
4+ $21.59
9+ $21.33
19+ $21.08
49+ $20.82
99+ $20.56
499+ $19.28
999+ $19.02
1999+ $18.76
2999+ $18.51
4999+ $17.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
30.16mm = 1.187 (1-3/16) inch
Style:
UCFE
Bolt Hole Centres:
82.5mm
Technical
--- Dimensions
Shaft diameter 1-3/16 inch
A 33.5mm
A1 12mm
A2 42.2mm
B 38.1mm
e 20mm
J 82.5mm
L 108mm
N 11.5mm
S 15.9mm
G R1/8″
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 3.7 Nm
Mass 1.15 kg
