• SNR UCFE206N Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFE206N-SNR

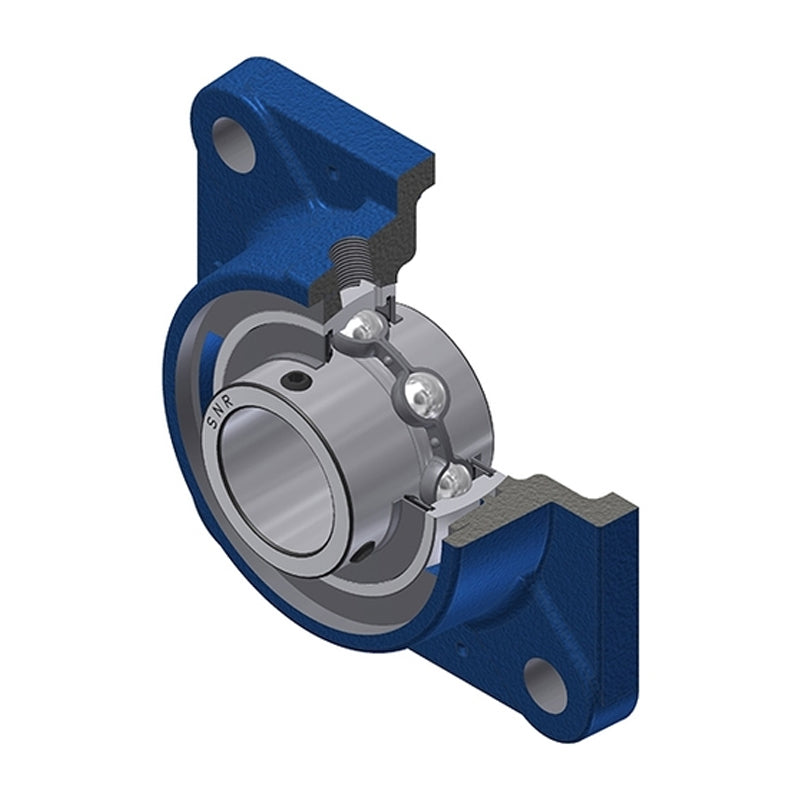

SNR UCFE206N Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days

SNR UCFE206N Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
$56.35 ex VAT
$56.35 ex VAT
Sale Sold out

In stock

Price Break
3+ $37.75
4+ $35.63
9+ $35.20
19+ $34.78
49+ $34.35
99+ $33.93
499+ $31.81
999+ $31.38
1999+ $30.96
2999+ $30.54
4999+ $29.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
UCFE
Bolt Hole Centres:
82.5mm
Technical
--- Dimensions
Shaft diameter 30mm
A 33.5mm
A1 12mm
A2 42.2mm
B 38.1mm
e 20mm
J 82.5mm
L 108mm
N 11.5mm
S 15.9mm
G R1/8″
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 1.14 kg
