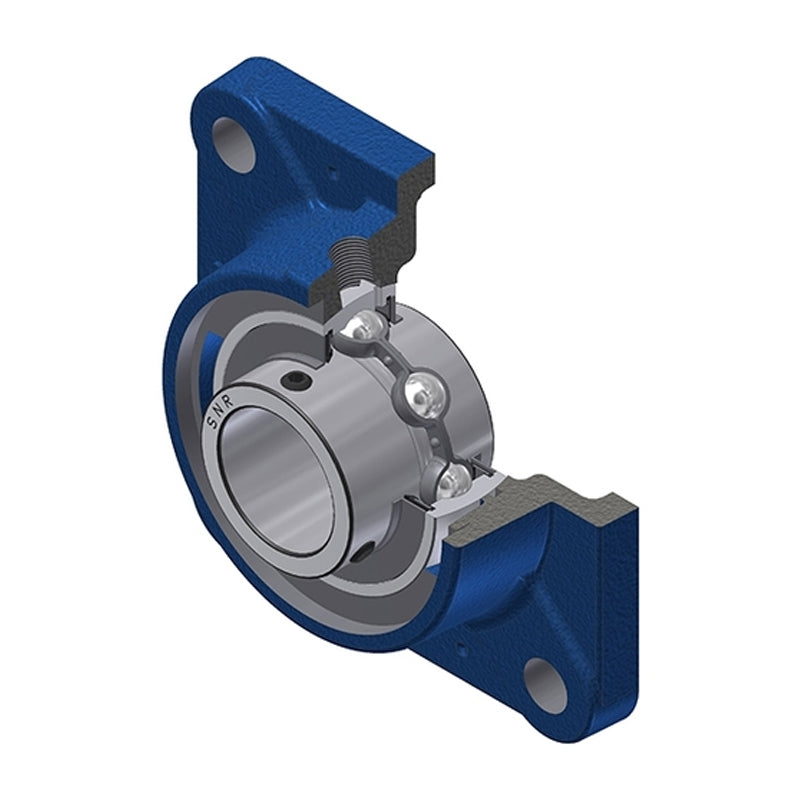

• SNR UCFE207N Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFE207N-SNR

SNR UCFE207N Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days

SNR UCFE207N Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
$58.91 ex VAT
$58.91 ex VAT
Sale Sold out

In stock

Price Break
3+ $39.46
4+ $37.25
9+ $36.80
19+ $36.36
49+ $35.91
99+ $35.47
499+ $33.25
999+ $32.81
1999+ $32.37
2999+ $31.92
4999+ $31.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
UCFE
Bolt Hole Centres:
92mm
Technical
--- Dimensions
Shaft diameter 35mm
A 36mm
A1 12.5mm
A2 46.4mm
B 42.9mm
e 21mm
J 92mm
L 118mm
N 14mm
S 17.5mm
G R1/8″
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.54 kg
