• SNR UCFE208-24 Imperial Four Bolt Square Cast Iron Flange Housing with 1-1/2 inch Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFE208-24-SNR

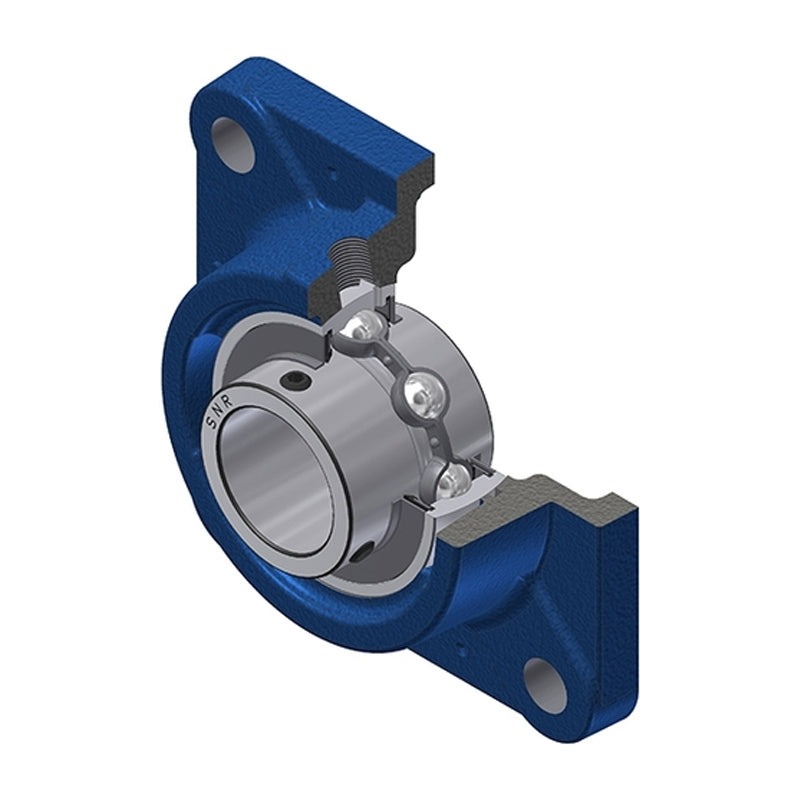

SNR UCFE208-24 Imperial Four Bolt Square Cast Iron Flange Housing with 1-1/2 inch Bore Insert - Allow 2-3 Days

SNR UCFE208-24 Imperial Four Bolt Square Cast Iron Flange Housing with 1-1/2 inch Bore Insert - Allow 2-3 Days
$43.26 ex VAT
$43.26 ex VAT
Sale Sold out

In stock

Price Break
3+ $28.98
4+ $27.35
9+ $27.02
19+ $26.70
49+ $26.37
99+ $26.05
499+ $24.42
999+ $24.09
1999+ $23.77
2999+ $23.44
4999+ $22.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
UCFE
Bolt Hole Centres:
101.5mm
Technical
--- Dimensions
Shaft diameter 1-1/2 inch
A 39.5mm
A1 13mm
A2 54.2mm
B 49.2mm
e 24mm
J 101.5mm
L 130mm
N 14mm
S 19mm
G R1/8″
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 8 Nm
Mass 2.09 kg
