SKU: UCFE208D1-NTN

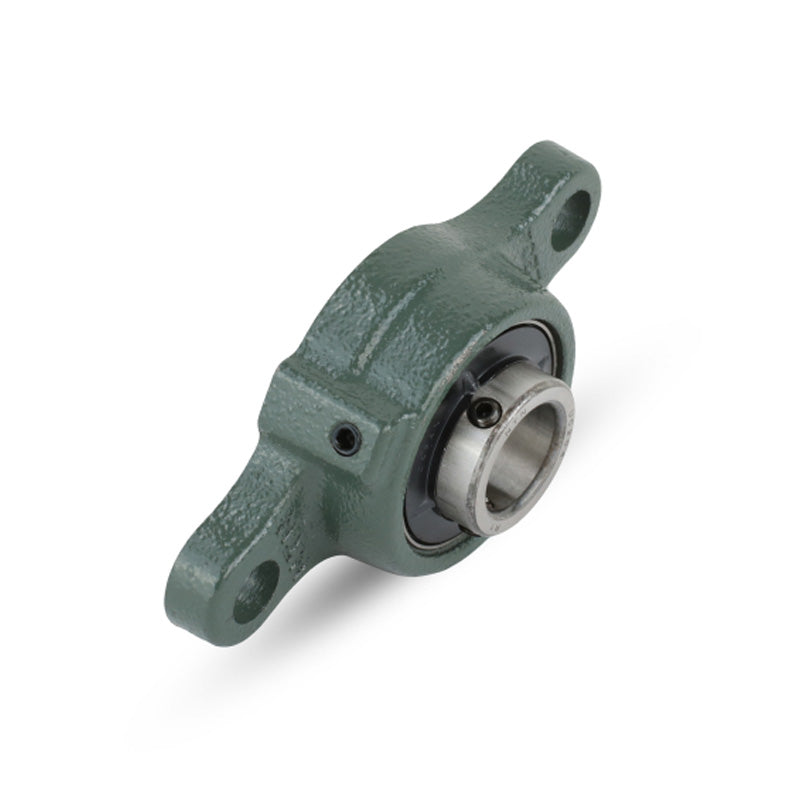

NTN UCFE208D1 Metric Ductile Cast Iron Two Bolt Rhombus Flange Housing 40mm Bore Insert - Allow 2-3 Days
NTN UCFE208D1 Metric Ductile Cast Iron Two Bolt Rhombus Flange Housing 40mm Bore Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCFE200 Series 2 Bolt Ductile Cast Iron Rhombus Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFE
- Bolt Hole Centres:
- 144mm
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| H | 172mm |
| J | 144mm |
| A<sub>2</sub> | 21mm |
| A<sub>1</sub> | 12mm |
| A | 35mm |
| N | 16mm |
| L | 95mm |
| A<sub>0</sub> | 51.2mm |
| B | 49.2mm |
| S | 19mm |
| Fixing bolt | M14 |
| Mass | 1.2 kg |
