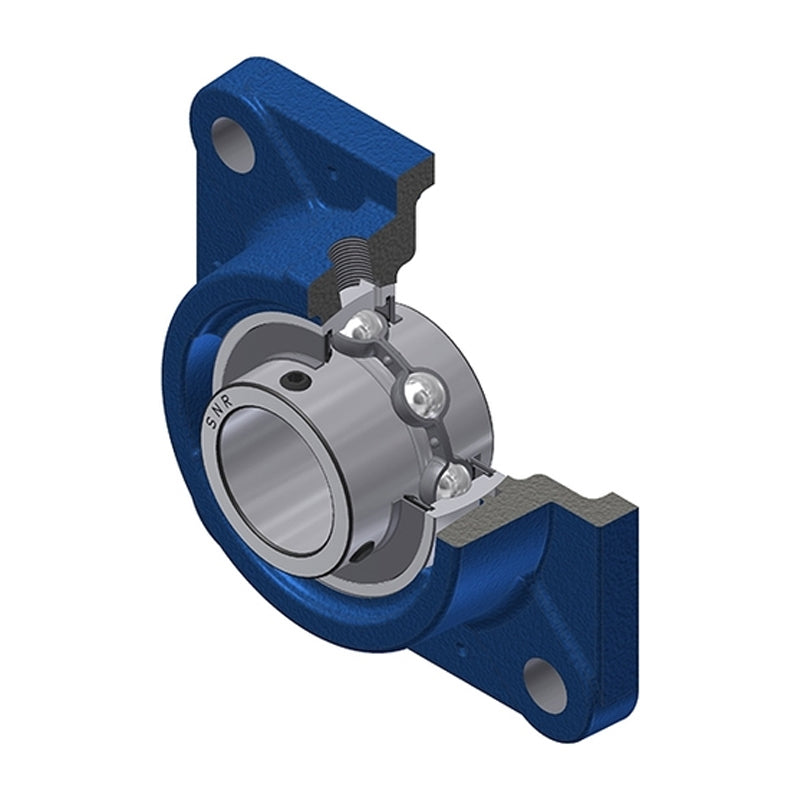

• SNR UCFE209-28 Imperial Four Bolt Square Cast Iron Flange Housing with 1-3/4 inch Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFE209-28-SNR

SNR UCFE209-28 Imperial Four Bolt Square Cast Iron Flange Housing with 1-3/4 inch Bore Insert - Allow 2-3 Days

SNR UCFE209-28 Imperial Four Bolt Square Cast Iron Flange Housing with 1-3/4 inch Bore Insert - Allow 2-3 Days
$48.67 ex VAT
$48.67 ex VAT
Sale Sold out

In stock

Price Break
3+ $32.60
4+ $30.77
9+ $30.40
19+ $30.04
49+ $29.67
99+ $29.30
499+ $27.47
999+ $27.10
1999+ $26.74
2999+ $26.37
4999+ $25.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Style:
UCFE
Bolt Hole Centres:
105mm
Technical
--- Dimensions
Shaft diameter 1-3/4 inch
A 40mm
A1 13mm
A2 54.2mm
B 49.2mm
e 24mm
J 105mm
L 137mm
N 14mm
S 19mm
G R1/8″
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 8 Nm
Mass 2.24 kg
