SKU: UCFE210T20-SNR

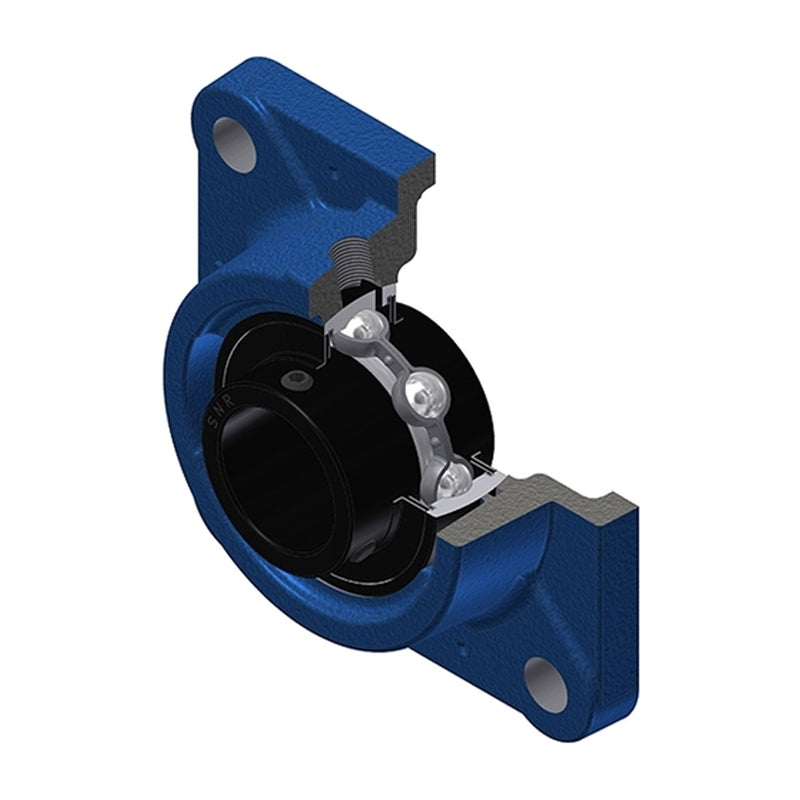

SNR UCFE210T20 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCFE210T20 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price $235.57 ex VAT
Regular price Sale price $235.57 ex VAT
Sale Sold out

In stock

Price Break
3+ $175.50
4+ $168.41
9+ $164.86
19+ $159.54
49+ $156.00
99+ $147.13
499+ $124.09
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 50mm
A 44mm
A1 13mm
A2 60.6mm
B 51.6mm
e 28mm
J 111mm
L 143mm
N 18mm
S 19mm
G R1/8″
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 22 Nm
Mass 2.56 kg
