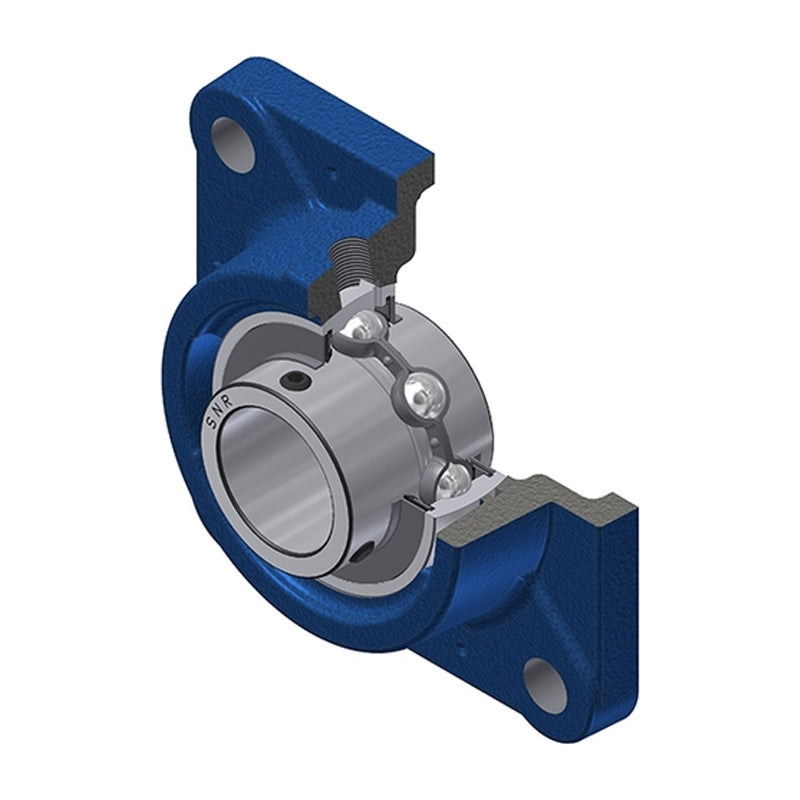

• SNR UCFE212-36 Imperial Four Bolt Square Cast Iron Flange Housing with 2-1/4 inch Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFE212-36-SNR

SNR UCFE212-36 Imperial Four Bolt Square Cast Iron Flange Housing with 2-1/4 inch Bore Insert - Allow 2-3 Days

SNR UCFE212-36 Imperial Four Bolt Square Cast Iron Flange Housing with 2-1/4 inch Bore Insert - Allow 2-3 Days
$82.18 ex VAT
$82.18 ex VAT
Sale Sold out

In stock

Price Break
3+ $55.05
4+ $51.96
9+ $51.34
19+ $50.72
49+ $50.10
99+ $49.48
499+ $46.39
999+ $45.77
1999+ $45.15
2999+ $44.53
4999+ $43.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
57.15mm = 2.25 (2-1/4) inch
Style:
UCFE
Bolt Hole Centres:
143mm
Technical
--- Dimensions
Shaft diameter 2-1/4 inch
A 53.5mm
A1 16mm
A2 73.7mm
B 65.1mm
e 34mm
J 143mm
L 175mm
N 18mm
S 25.4mm
G R1/8″
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 16.8 Nm
Mass 5 kg
