SKU: UCFE212CC-SNR

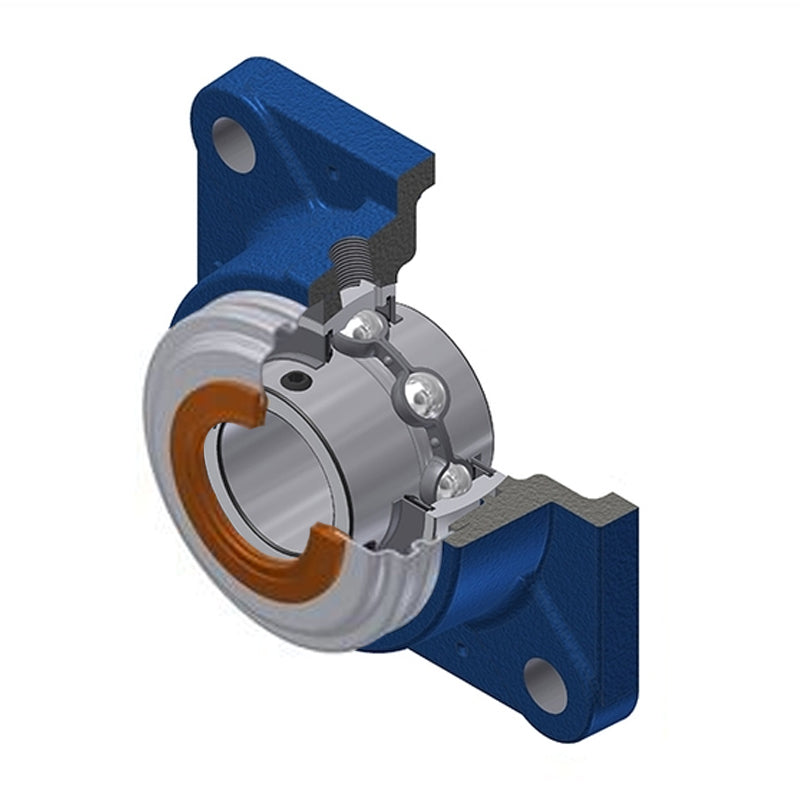

SNR UCFE212CC Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCFE212CC Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price $147.25 ex VAT
Regular price Sale price $147.25 ex VAT
Sale Sold out

In stock

Price Break
3+ $109.70
4+ $105.27
9+ $103.05
19+ $99.73
49+ $97.51
99+ $91.97
499+ $77.57
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 60mm
A 53.5mm
A1 16mm
A2 73.7mm
B 65.1mm
e 34mm
J 143mm
L 175mm
N 18mm
S 25.4mm
Dz 120mm
Z 78.9mm
G R1/8″
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.997 kg
