SKU: UCFE212T20-SNR

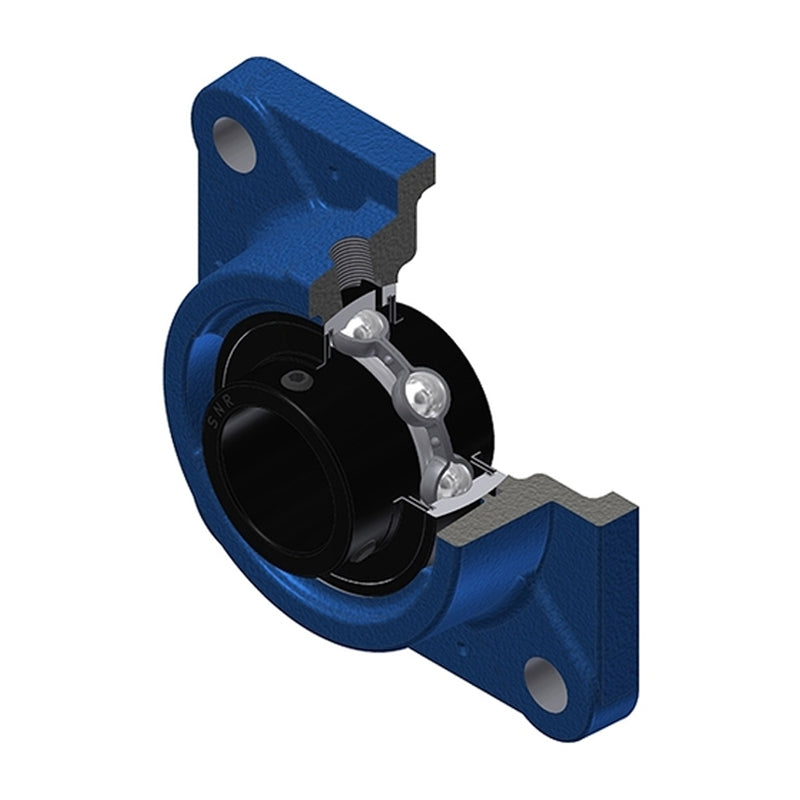

SNR UCFE212T20 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCFE212T20 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price $235.65 ex VAT
Regular price Sale price $235.65 ex VAT
Sale Sold out

In stock

Price Break
3+ $175.56
4+ $168.46
9+ $164.92
19+ $159.60
49+ $156.05
99+ $147.18
499+ $124.13
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 60mm
A 53.5mm
A1 16mm
A2 73.7mm
B 65.1mm
e 34mm
J 143mm
L 175mm
N 18mm
S 25.4mm
G R1/8″
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 22 Nm
Mass 4.86 kg
