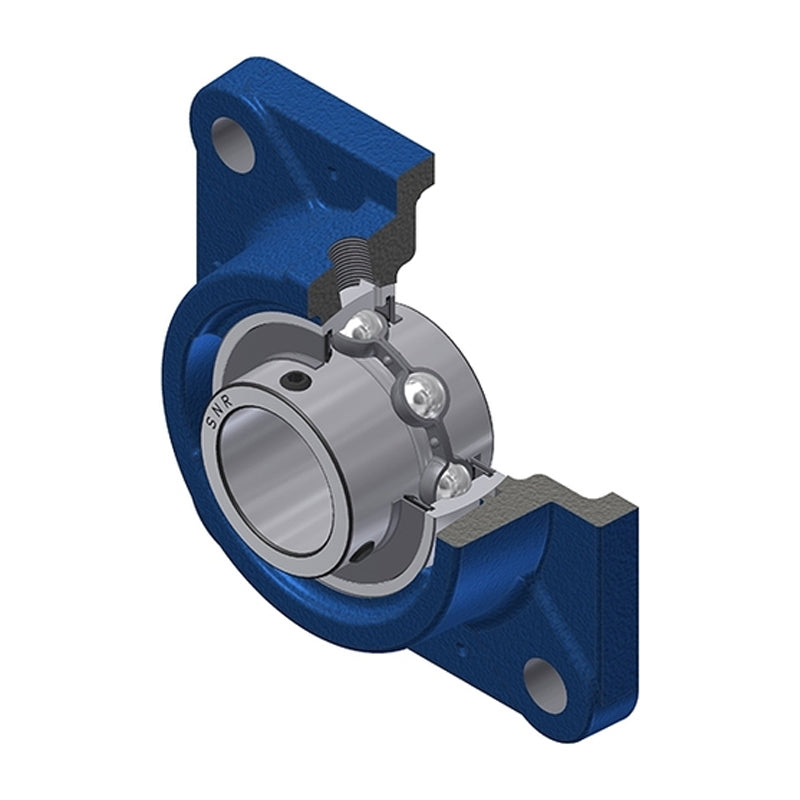

• SNR UCFE213 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFE213-SNR

SNR UCFE213 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days

SNR UCFE213 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days
$105.87 ex VAT
$105.87 ex VAT
Sale Sold out

In stock

Price Break
3+ $70.92
4+ $66.93
9+ $66.14
19+ $65.34
49+ $64.54
99+ $63.75
499+ $59.76
999+ $58.97
1999+ $58.17
2999+ $57.37
4999+ $55.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
65mm
Style:
UCFE
Bolt Hole Centres:
150mm
Technical
--- Dimensions
Shaft diameter 65mm
A 56mm
A1 18mm
A2 77.7mm
B 65.1mm
e 38mm
J 150mm
L 188mm
N 18mm
S 25.4mm
G R1/8″
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 6.34 kg
