• SNR UCFE215 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFE215-SNR

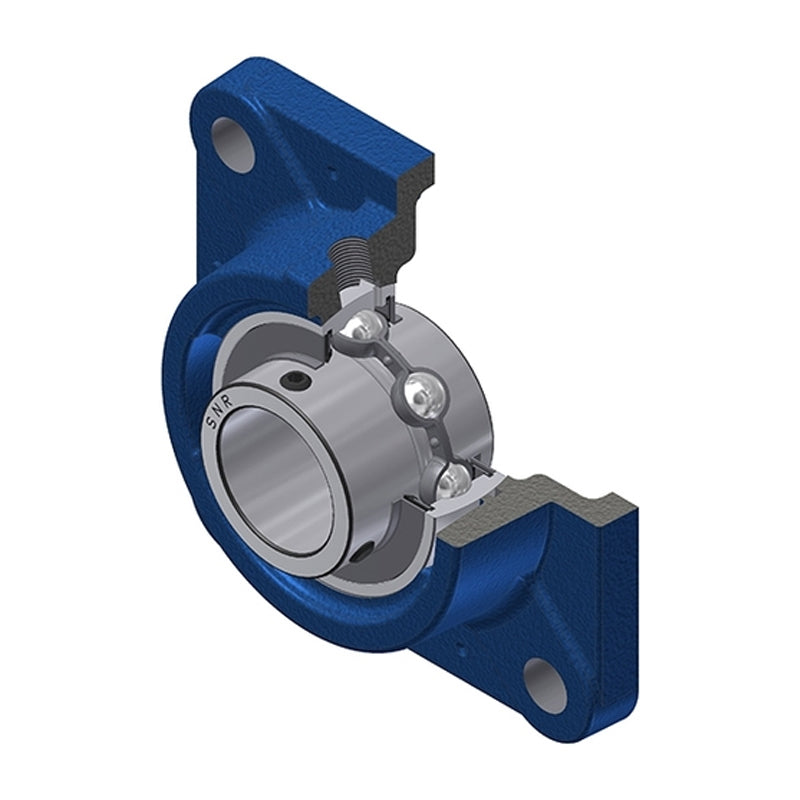

SNR UCFE215 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert - Allow 2-3 Days

SNR UCFE215 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert - Allow 2-3 Days
$153.69 ex VAT
$153.69 ex VAT
Sale Sold out

In stock

Price Break
3+ $102.94
4+ $97.16
9+ $96.00
19+ $94.85
49+ $93.69
99+ $92.53
499+ $86.75
999+ $85.59
1999+ $84.44
2999+ $83.28
4999+ $80.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
75mm
Style:
UCFE
Bolt Hole Centres:
153mm
Technical
--- Dimensions
Shaft diameter 75mm
A 59mm
A1 20mm
A2 85.8mm
B 77.8mm
e 41.3mm
J 153mm
L 197mm
N 23mm
S 33.3mm
G R1/8″
--- Load rating
Dynamic load C 66 kN
Static load C0 49.5 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 6.26 kg
