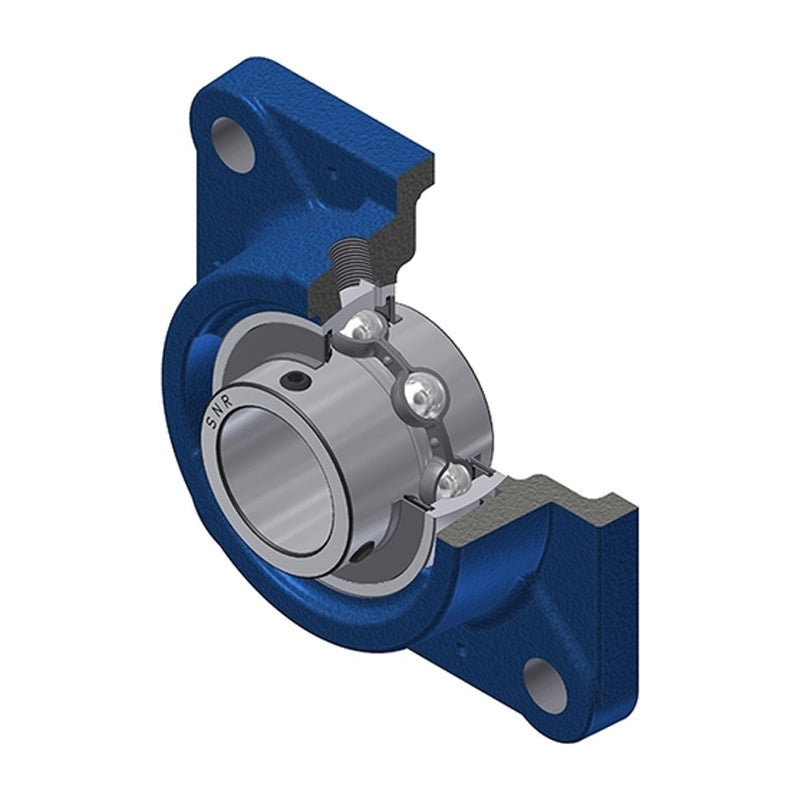

• SNR UCFE216 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFE216-SNR

SNR UCFE216 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert - Allow 2-3 Days

SNR UCFE216 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert - Allow 2-3 Days
$179.31 ex VAT
$179.31 ex VAT
Sale Sold out

In stock

Price Break
3+ $120.10
4+ $113.35
9+ $112.01
19+ $110.66
49+ $109.31
99+ $107.96
499+ $101.21
999+ $99.86
1999+ $98.51
2999+ $97.16
4999+ $94.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
80mm
Style:
UCFE
Bolt Hole Centres:
153mm
Technical
--- Dimensions
Shaft diameter 80mm
A 61mm
A1 20mm
A2 90.6mm
B 82.6mm
e 41.3mm
J 153mm
L 197mm
N 23mm
S 33.3mm
G R1/8″
--- Load rating
Dynamic load C 72.5 kN
Static load C0 54.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 7.04 kg
