SKU: UCFH208-108D1-NTN

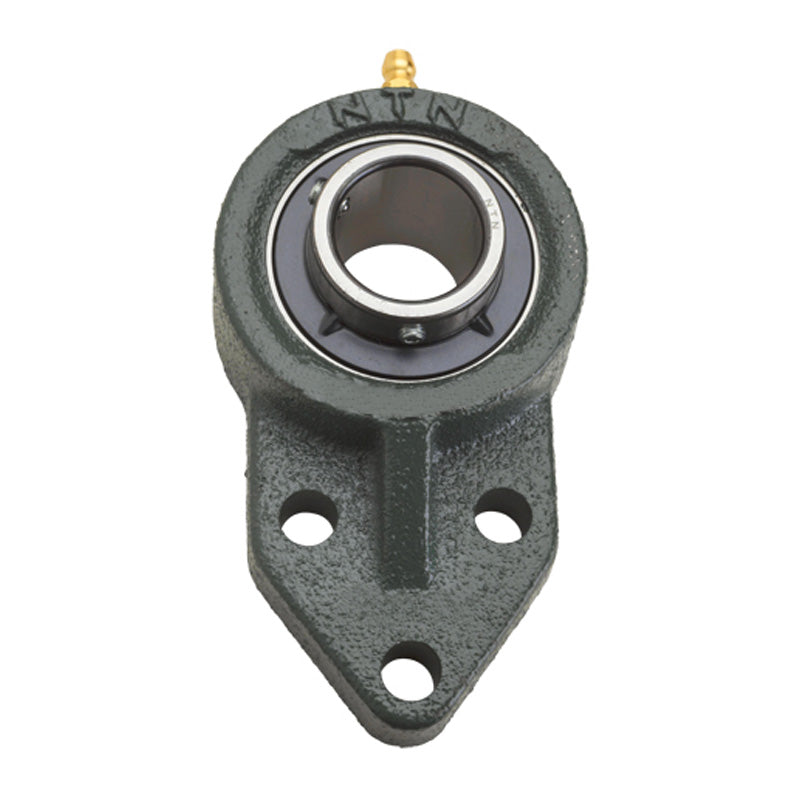

NTN UCFH208-108D1 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 1-1/2 inch Bore - Allow 2-3 Days
NTN UCFH208-108D1 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 1-1/2 inch Bore - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCFH200 Series 3 Bolt Cast Iron Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UCFH
- Bolt Hole Centres:
- 1-31/32 inch
Technical
Technical
| Shaft diameter | 1-1/2 inch |
|---|---|
| H<sub>3</sub> | 6-15/32 inch |
| J | 1-31/32 inch |
| A<sub>2</sub> | 53/64 inch |
| A<sub>1</sub> | 5/8 inch |
| A | 1-13/32 inch |
| N | 15/32 inch |
| H | 2-23/64 inch |
| H<sub>1</sub> | 1-39/64 inch |
| L<sub>1</sub> | 3-1/16 inch |
| H<sub>2</sub> | 2-27/32 inch |
| L | 3-15/16 inch |
| A<sub>0</sub> | 2-1/64 inch |
| B | 1.937 inch |
| S | 0.748 inch |
| Fixing bolt | 3/8 inch |
| Mass | 4 lbs |
