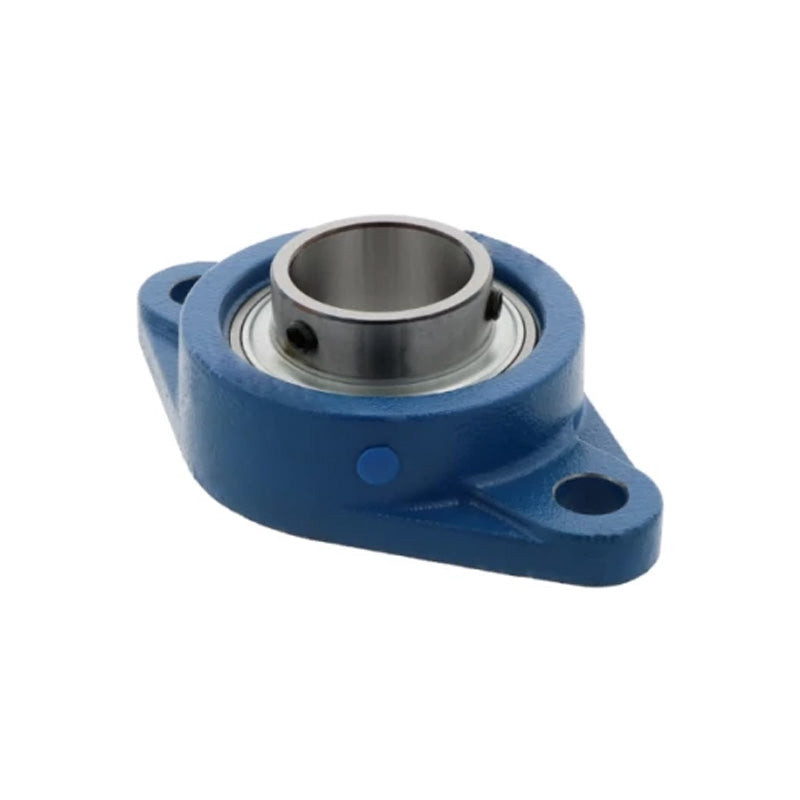

• Challenge / FK UCFL204 Metric Cast Iron Two Bolt Oval Flange Housing with 20mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
1 1

SKU: UCFL.204.TS.CHAL

Challenge / FK UCFL204 Metric Cast Iron Two Bolt Oval Flange Housing with 20mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCFL204 Metric Cast Iron Two Bolt Oval Flange Housing with 20mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$28.58 ex VAT
$28.58 ex VAT
Sale Sold out

Equivalent to: UCFL.204

In stock

Price Break
3+ $19.15
5+ $18.07
9+ $17.86
19+ $17.64
49+ $17.42
74+ $17.21
99+ $16.13
199+ $15.92
249+ $15.70
499+ $15.49
999+ $15.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge / FK - Good Quality
Inside Diameter:
20mm
Style:
UCFL
Bolt Hole Centres:
90mm
Technical
Shaft Diameter d 20mm
Casting Length a 113mm
Recommended Bolt Centres L 90mm
Back of Casting to Centre Line of Bearing i 15mm
Depth of Casting at Bolt g 11mm
Overall Casting Height l 25.5mm
Bolt Hole Diameter s 12mm
Casting Width b 60mm
Back of Casting to Bearing Front z 33.3mm
Bearing Insert Width Bi 31mm
Back of Bearing to Centre Line n 12.7mm
Bolt Size M10
Grub Screws x 2 M6x0.75mm
Load Rating (Dynamic) 1000kg
Load Rating (Static) 630kg
Max Speed 4000 rev/min
Grease Nipple Thread Size M6
Working Temperature -30°C to +120°C
Insert No UC204
Housing No FL204
