• SNR UCFL205T20 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert Wide Temperature Version - Allow 2-3 Days
1 1

SKU: UCFL205T20-SNR

SNR UCFL205T20 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCFL205T20 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert Wide Temperature Version - Allow 2-3 Days
$88.27 ex VAT
$88.27 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.76
4+ $63.10
9+ $61.77
19+ $59.78
49+ $58.45
99+ $55.13
499+ $46.49
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

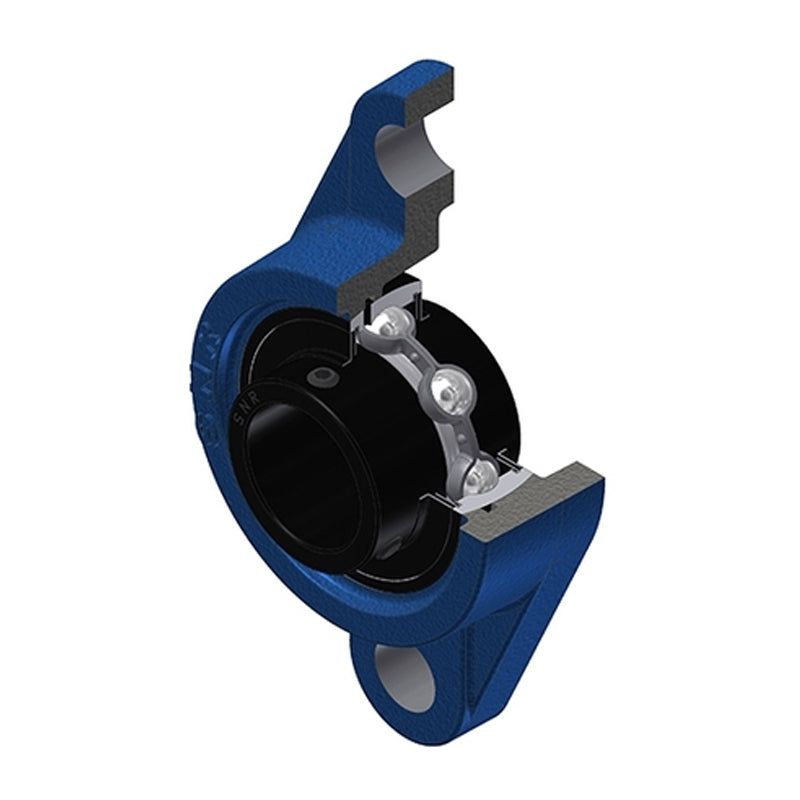

UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
UCFL
Bolt Hole Centres:
90mm
Technical
--- Dimensions
Shaft diameter d 25mm
A 27mm
A1 13mm
A2 35.7mm
B 34mm
e 16mm
H 130mm
J 90mm
L 68mm
N 16mm
S 14.3mm
G M6x1
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.62 kg
