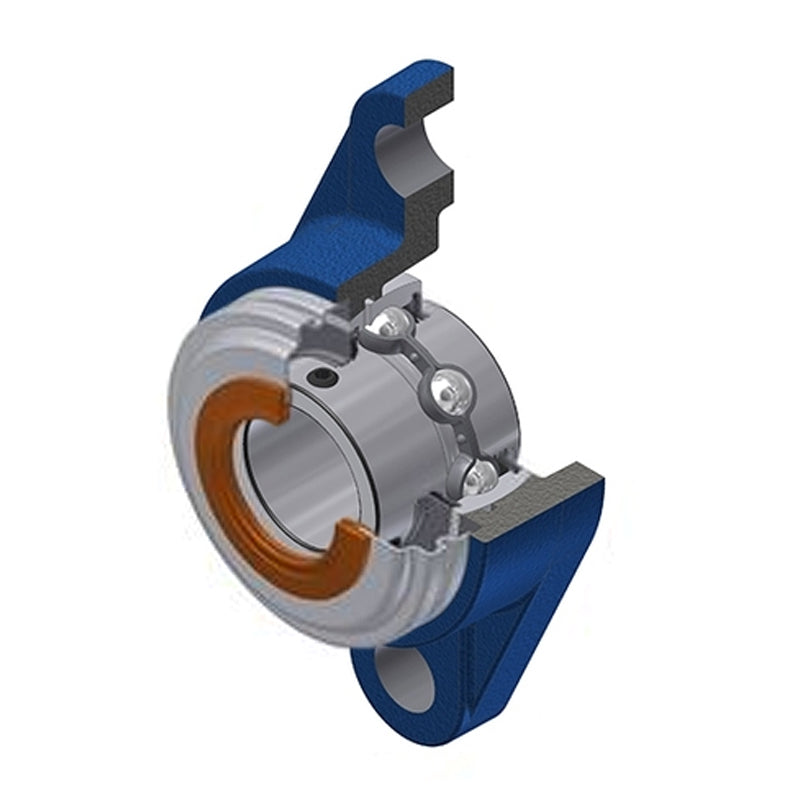

• SNR UCFL206-18CC Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/8 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: UCFL206-18CC-SNR

SNR UCFL206-18CC Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/8 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCFL206-18CC Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/8 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
$73.63 ex VAT
$73.63 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.86
4+ $52.64
9+ $51.53
19+ $49.87
49+ $48.76
99+ $45.99
499+ $38.79
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
28.58mm = 1.125 (1-1/8) inch
Style:
UCFL
Bolt Hole Centres:
117mm
Technical
--- Dimensions
Shaft diameter d 1-1/8 inch
A 31mm
A1 13mm
A2 40.2mm
B 38.1mm
e 18mm
H 148mm
J 117mm
L 80mm
N 16mm
S 15.9mm
Dz 70mm
Z 44.4mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 3.7 Nm
Mass 0.95 kg
