SKU: UCFL206N-SNR
SNR UCFL206N Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert
SNR UCFL206N Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert
Regular price
$39.85
ex VAT
Regular price
Sale price
$39.85
ex VAT
In stock
Price Break
3+
$26.69
4+
$25.19
9+
$24.89
19+
$24.59
49+
$24.29
99+
$23.99
499+
$22.49
999+
$22.19
1999+
$21.89
2999+
$21.59
4999+
$20.99
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCFL
- Bolt Hole Centres:
- 117mm
Technical
Technical

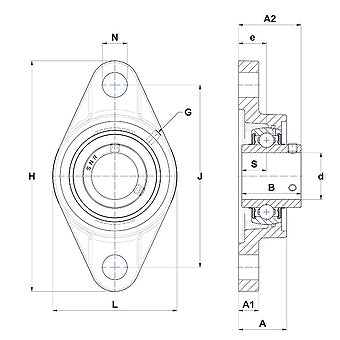

| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 31mm |
| A1 | 13mm |
| A2 | 40.2mm |
| B | 38.1mm |
| e | 18mm |
| H | 148mm |
| J | 117mm |
| L | 80mm |
| N | 16mm |
| S | 15.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.88 kg |
