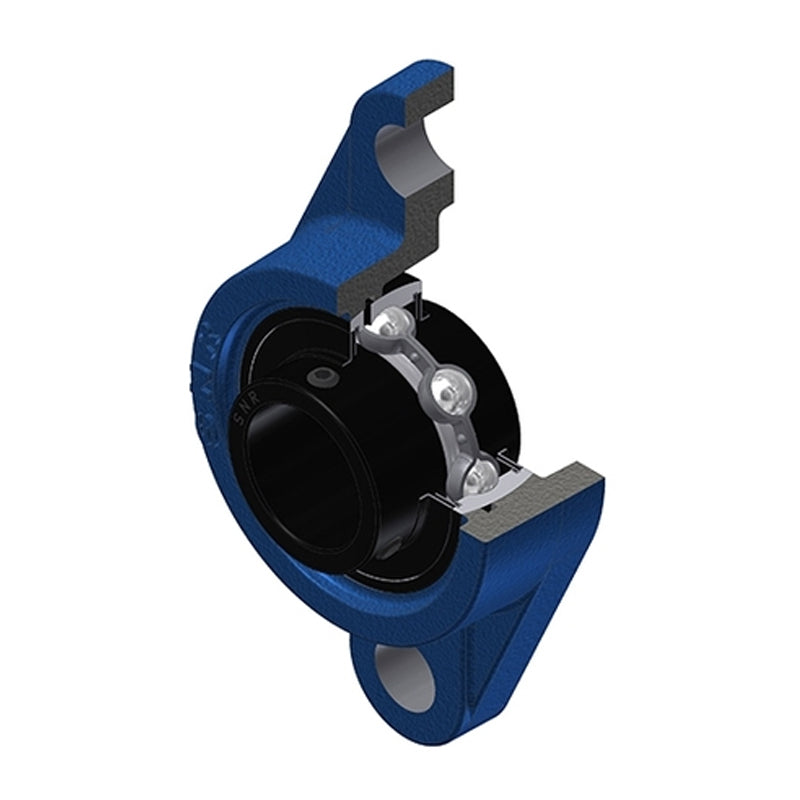

• SNR UCFL206T20 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert Wide Temperature Version - Allow 2-3 Days
  • SNR
1 2

SKU: UCFL206T20-SNR

SNR UCFL206T20 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCFL206T20 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert Wide Temperature Version - Allow 2-3 Days
$40.57 ex VAT
$40.57 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.17
4+ $25.64
9+ $25.34
19+ $25.03
49+ $24.73
99+ $24.42
499+ $22.90
999+ $22.59
1999+ $22.29
2999+ $21.98
4999+ $21.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
UCFL
Bolt Hole Centres:
117mm
Technical
--- Dimensions
Shaft diameter d 30mm
A 31mm
A1 13mm
A2 40.2mm
B 38.1mm
e 18mm
H 148mm
J 117mm
L 80mm
N 16mm
S 15.9mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.89 kg
