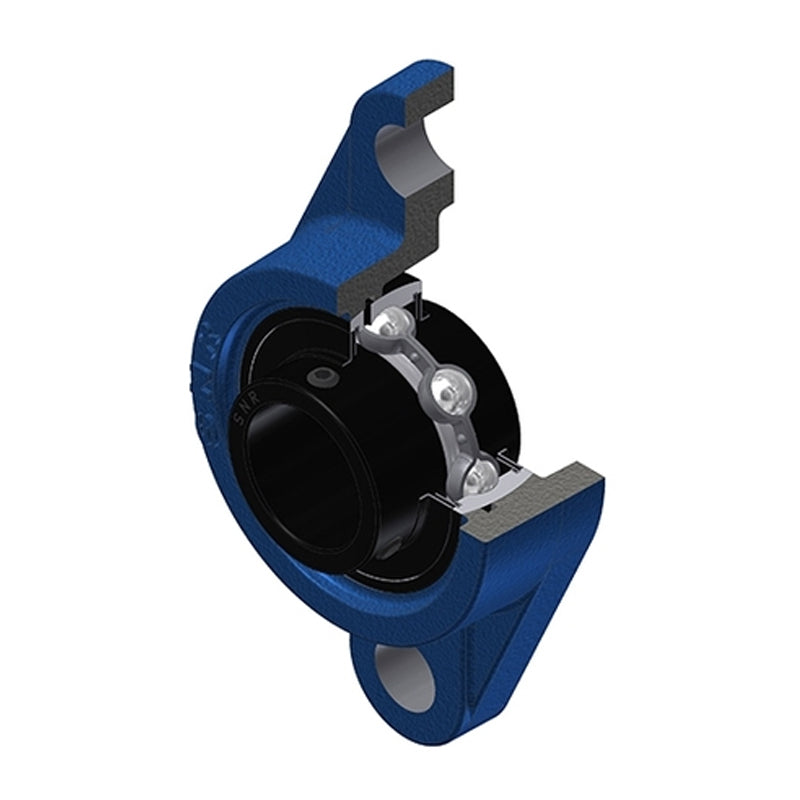

• SNR UCFL207T20 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert Wide Temperature Version - Allow 2-3 Days
  • SNR
1 2

SKU: UCFL207T20-SNR

SNR UCFL207T20 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCFL207T20 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert Wide Temperature Version - Allow 2-3 Days
$79.84 ex VAT
$79.84 ex VAT
Sale Sold out

In stock

Price Break
3+ $53.48
4+ $50.47
9+ $49.87
19+ $49.27
49+ $48.67
99+ $48.07
499+ $45.07
999+ $44.47
1999+ $43.86
2999+ $43.26
4999+ $42.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
UCFL
Bolt Hole Centres:
130mm
Technical
--- Dimensions
Shaft diameter d 35mm
A 34mm
A1 14mm
A2 44.4mm
B 42.9mm
e 19mm
H 161mm
J 130mm
L 90mm
N 16mm
S 17.5mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.17 kg
