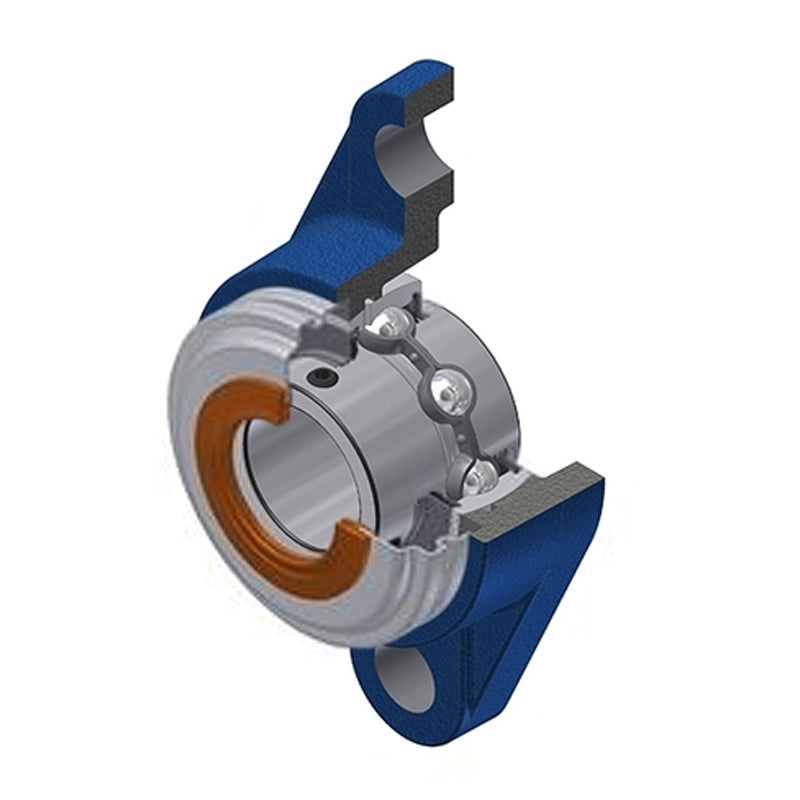

• SNR UCFL208-24CC Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/2 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: UCFL208-24CC-SNR

SNR UCFL208-24CC Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/2 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCFL208-24CC Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/2 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
$88.32 ex VAT
$88.32 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.80
4+ $63.14
9+ $61.81
19+ $59.81
49+ $58.48
99+ $55.16
499+ $46.52
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
UCFL
Bolt Hole Centres:
144mm
Technical
--- Dimensions
Shaft diameter d 1-1/2 inch
A 36mm
A1 14mm
A2 51.2mm
B 49.2mm
e 21mm
H 175mm
J 144mm
L 100mm
N 16mm
S 19mm
Dz 88mm
Z 55.7mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 8 Nm
Mass 1.578 kg
