• SNR UCFL208L3 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert with Triple Lip Seal
  • SNR
1 2

SKU: UCFL208L3-SNR

SNR UCFL208L3 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert with Triple Lip Seal

SNR UCFL208L3 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert with Triple Lip Seal
$76.59 ex VAT
$76.59 ex VAT
Sale Sold out

In stock

Price Break
3+ $51.30
4+ $48.42
9+ $47.84
19+ $47.27
49+ $46.69
99+ $46.11
499+ $43.23
999+ $42.65
1999+ $42.08
2999+ $41.50
4999+ $40.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
UCFL
Bolt Hole Centres:
144mm
Technical

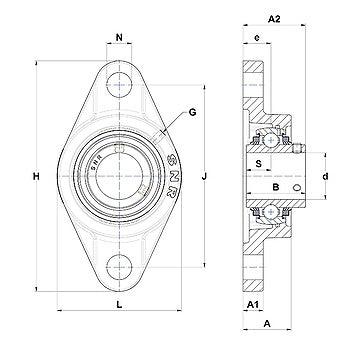

--- Dimensions
Shaft diameter d 40mm
A 36mm
A1 14mm
A2 51.2mm
B 49.2mm
e 21mm
H 175mm
J 144mm
L 100mm
N 16mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.46 kg
