• SNR UCFL209CO Metric Two Bolt Oval Cast Iron Flange Housing with 45mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
  • SNR
1 2

SKU: UCFL209CO-SNR

SNR UCFL209CO Metric Two Bolt Oval Cast Iron Flange Housing with 45mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCFL209CO Metric Two Bolt Oval Cast Iron Flange Housing with 45mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
$69.16 ex VAT
$69.16 ex VAT
Sale Sold out

In stock

Price Break
3+ $46.33
4+ $43.72
9+ $43.20
19+ $42.68
49+ $42.16
99+ $41.64
499+ $39.04
999+ $38.52
1999+ $38.00
2999+ $37.48
4999+ $36.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
UCFL
Bolt Hole Centres:
148mm
Technical

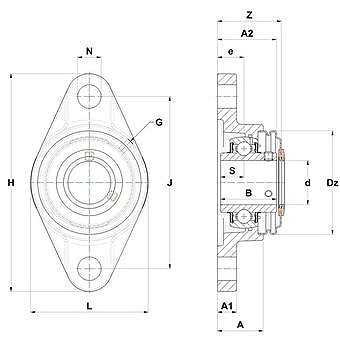

--- Dimensions
Shaft diameter d 45mm
A 38mm
A1 16mm
A2 52.2mm
B 49.2mm
e 22mm
H 188mm
J 148mm
L 108mm
N 19mm
S 19mm
Dz 95mm
Z 56.9mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.899 kg
