• SNR UCFL210NL3 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
1 1

SKU: UCFL210NL3-SNR

SNR UCFL210NL3 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert with Triple Lip Seal - Allow 2-3 Days

SNR UCFL210NL3 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
$117.74 ex VAT
$117.74 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.71
4+ $84.17
9+ $82.40
19+ $79.74
49+ $77.97
99+ $73.54
499+ $62.02
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

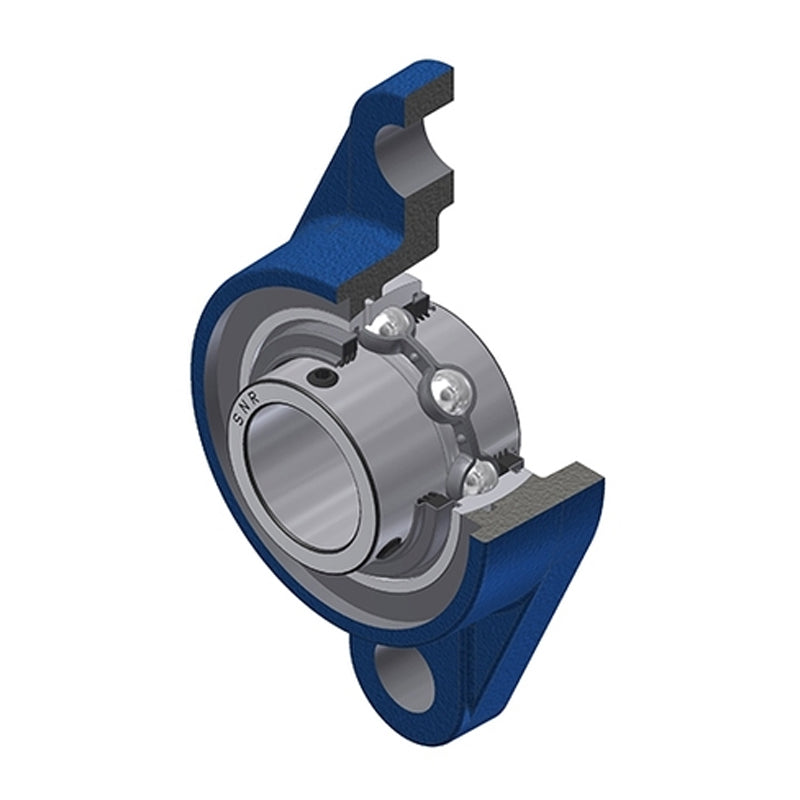

UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
UCFL
Bolt Hole Centres:
157mm
Technical
--- Dimensions
Shaft diameter d 50mm
A 40mm
A1 16mm
A2 54.6mm
B 51.6mm
e 22mm
H 197mm
J 157mm
L 115mm
N 19mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.13 kg
