• SNR UCFL212T20 Metric Two Bolt Oval Cast Iron Flange Housing with 60mm Bore Insert Wide Temperature Version - Allow 2-3 Days
1 1

SKU: UCFL212T20-SNR

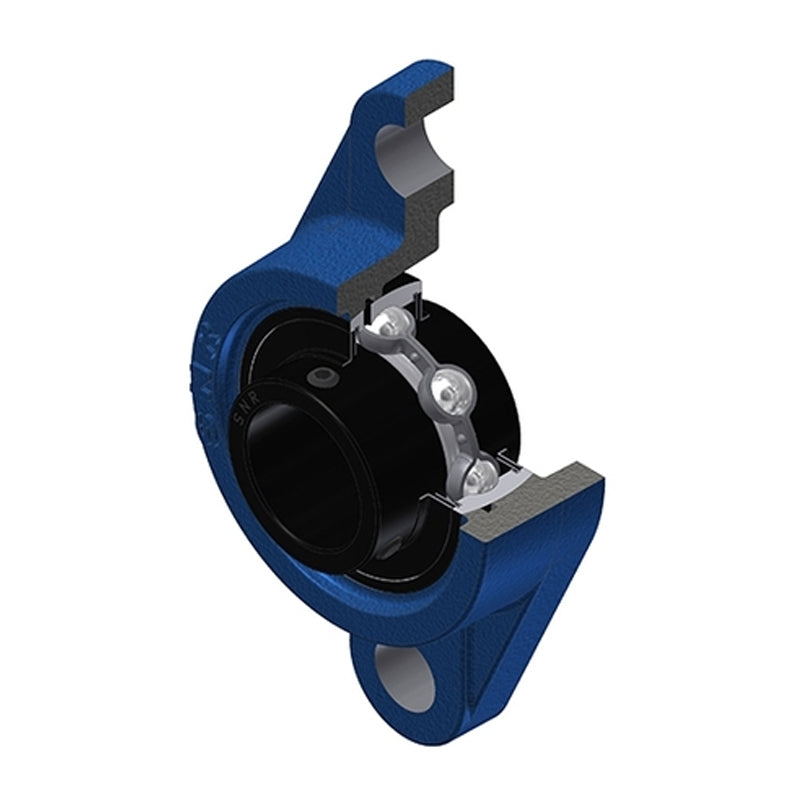

SNR UCFL212T20 Metric Two Bolt Oval Cast Iron Flange Housing with 60mm Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCFL212T20 Metric Two Bolt Oval Cast Iron Flange Housing with 60mm Bore Insert Wide Temperature Version - Allow 2-3 Days
$294.50 ex VAT
$294.50 ex VAT
Sale Sold out

In stock

Price Break
3+ $219.39
4+ $210.53
9+ $206.10
19+ $199.45
49+ $195.02
99+ $183.94
499+ $155.13
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
UCFL
Bolt Hole Centres:
202mm
Technical
--- Dimensions
Shaft diameter d 60mm
A 48mm
A1 18mm
A2 68.7mm
B 65.1mm
e 29mm
H 250mm
J 202mm
L 140mm
N 23mm
S 25.4mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 22 Nm
Mass 3.81 kg
