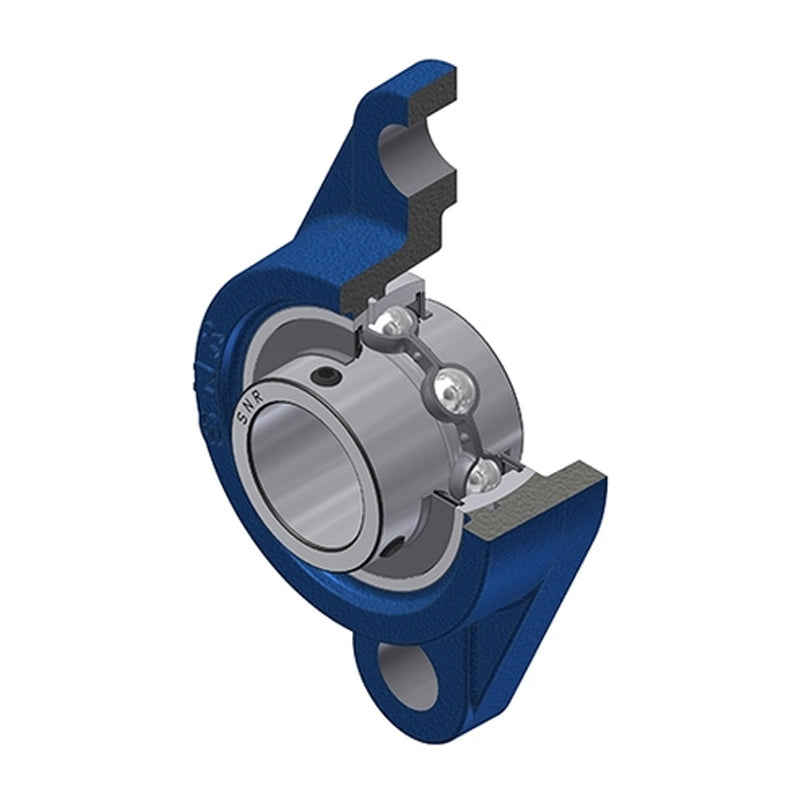

• SNR UCFL213 Metric Two Bolt Oval Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFL213-SNR

SNR UCFL213 Metric Two Bolt Oval Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days

SNR UCFL213 Metric Two Bolt Oval Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days
$99.25 ex VAT
$99.25 ex VAT
Sale Sold out

In stock

Price Break
3+ $66.49
4+ $62.75
9+ $62.01
19+ $61.26
49+ $60.51
99+ $59.76
499+ $56.03
999+ $55.28
1999+ $54.53
2999+ $53.79
4999+ $52.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
65mm
Style:
UCFL
Bolt Hole Centres:
210mm
Technical
--- Dimensions
Shaft diameter d 65mm
A 50mm
A1 20mm
A2 69.7mm
B 65.1mm
e 30mm
H 258mm
J 210mm
L 155mm
N 23mm
S 25.4mm
G M6x1
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 4.76 kg
