SKU: UCFL312

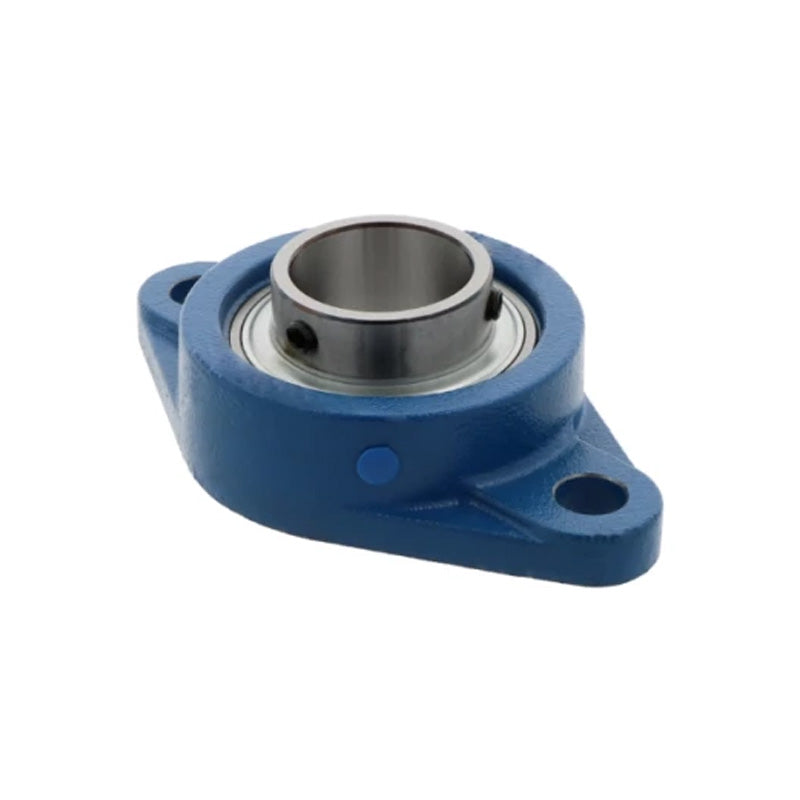

UCFL312 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 60mm Bore
UCFL312 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 60mm Bore
Regular price
$128.06
ex VAT
Regular price
Sale price
$128.06
ex VAT
In stock
Price Break
3+
$85.78
4+
$80.96
9+
$79.99
19+
$79.03
49+
$78.07
99+
$77.10
499+
$72.28
999+
$71.32
1999+
$70.36
2999+
$69.39
4999+
$67.47
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCFL
- Bolt Hole Centres:
- 212mm
Technical
Technical
| d | 60mm |
|---|---|
| a | 270mm |
| e | 212mm |
| i | 33mm |
| g | 22mm |
| l | 56mm |
| s | 31mm |
| b | 160mm |
| z | 78mm |
| B | 71mm |
| n | 26mm |
| Bolt size | M27 |
| Bearing no | UC312 |
| Housing no | FL312 |
| Weight | 5.771 kg |
