SKU: UCFL313

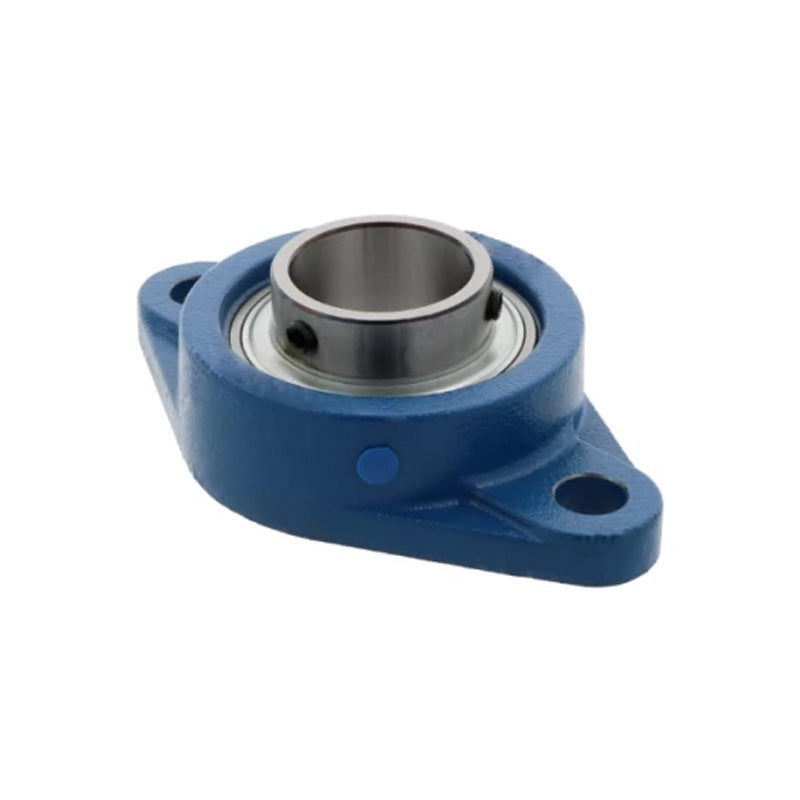

UCFL313 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 65mm Bore
UCFL313 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 65mm Bore
Regular price
$149.73
ex VAT
Regular price
Sale price
$149.73
ex VAT
In stock
Price Break
3+
$100.29
4+
$94.66
9+
$93.53
19+
$92.41
49+
$91.28
99+
$90.15
499+
$84.52
999+
$83.39
1999+
$82.26
2999+
$81.14
4999+
$78.88
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Style:
- UCFL
- Bolt Hole Centres:
- 240mm
Technical
Technical
| d | 65mm |
|---|---|
| a | 295mm |
| e | 240mm |
| i | 33mm |
| g | 25mm |
| l | 58mm |
| s | 31mm |
| b | 175mm |
| z | 78mm |
| B | 75mm |
| n | 30mm |
| Bolt size | M27 |
| Bearing no | UC313 |
| Housing no | FL313 |
| Weight | 7.377 kg |
