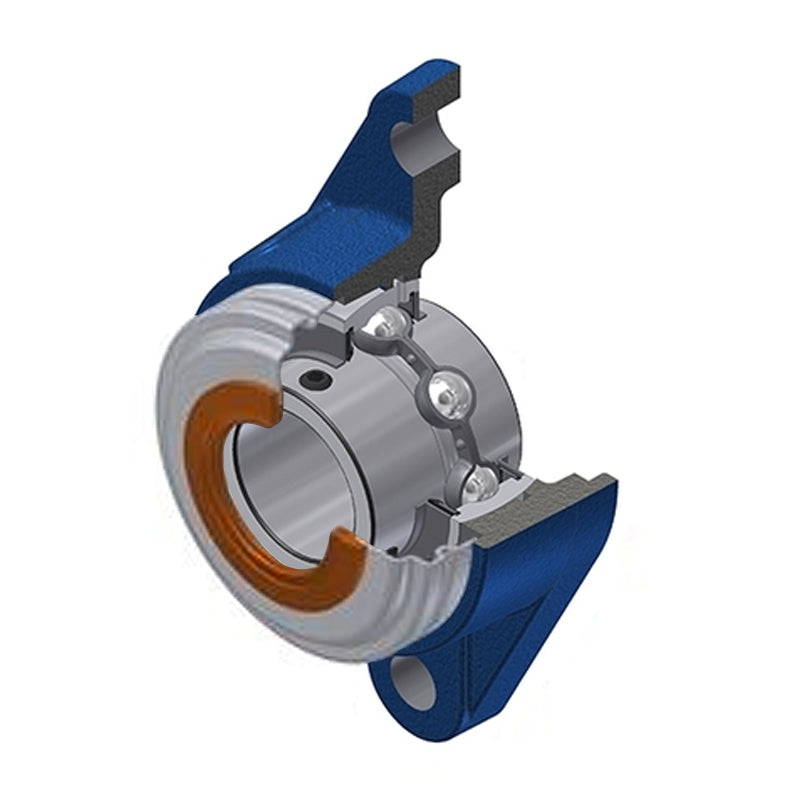

• SNR UCFLE203-11CC Imperial Two Bolt Oval Cast Iron Flange Housing with 11/16 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: UCFLE203-11CC-SNR

SNR UCFLE203-11CC Imperial Two Bolt Oval Cast Iron Flange Housing with 11/16 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCFLE203-11CC Imperial Two Bolt Oval Cast Iron Flange Housing with 11/16 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
$73.63 ex VAT
$73.63 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.86
4+ $52.64
9+ $51.53
19+ $49.87
49+ $48.76
99+ $45.99
499+ $38.79
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
17.46mm = 0.687 (11/16) inch
Style:
UCFLE
Bolt Hole Centres:
90mm
Technical
--- Dimensions
Shaft diameter d 11/16 inch
A 30.3mm
A1 10mm
A2 37.3mm
B 31mm
e 19mm
H 112mm
J 90mm
L 61mm
N 11.5mm
S 12.7mm
Dz 54mm
Z 41.6mm
G R1/8″
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 3.7 Nm
Mass 0.48 kg
