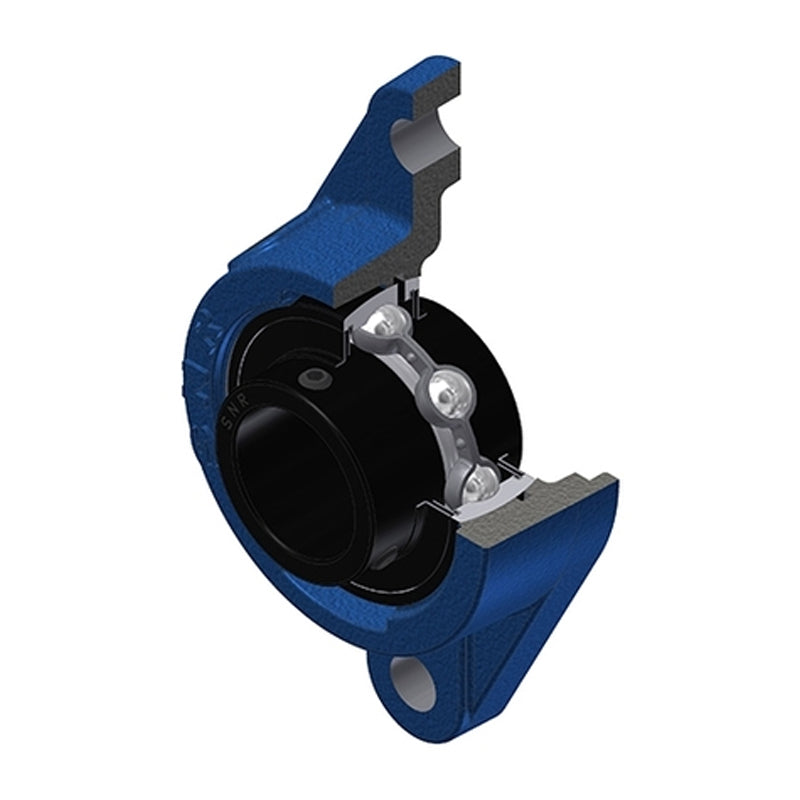

• SNR UCFLE204-12T20 Imperial Two Bolt Oval Cast Iron Flange Housing with 3/4 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
  • SNR
1 2

SKU: UCFLE204-12T20-SNR

SNR UCFLE204-12T20 Imperial Two Bolt Oval Cast Iron Flange Housing with 3/4 inch Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCFLE204-12T20 Imperial Two Bolt Oval Cast Iron Flange Housing with 3/4 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
$53.79 ex VAT
$53.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $36.03
4+ $34.01
9+ $33.60
19+ $33.20
49+ $32.79
99+ $32.39
499+ $30.36
999+ $29.96
1999+ $29.55
2999+ $29.15
4999+ $28.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Style:
UCFLE
Bolt Hole Centres:
90mm
Technical
--- Dimensions
Shaft diameter d 3/4 inch
A 30.3mm
A1 10mm
A2 37.3mm
B 31mm
e 19mm
H 112mm
J 90mm
L 61mm
N 11.5mm
S 12.7mm
G R1/8″
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 3.7 Nm
Mass 0.47 kg
