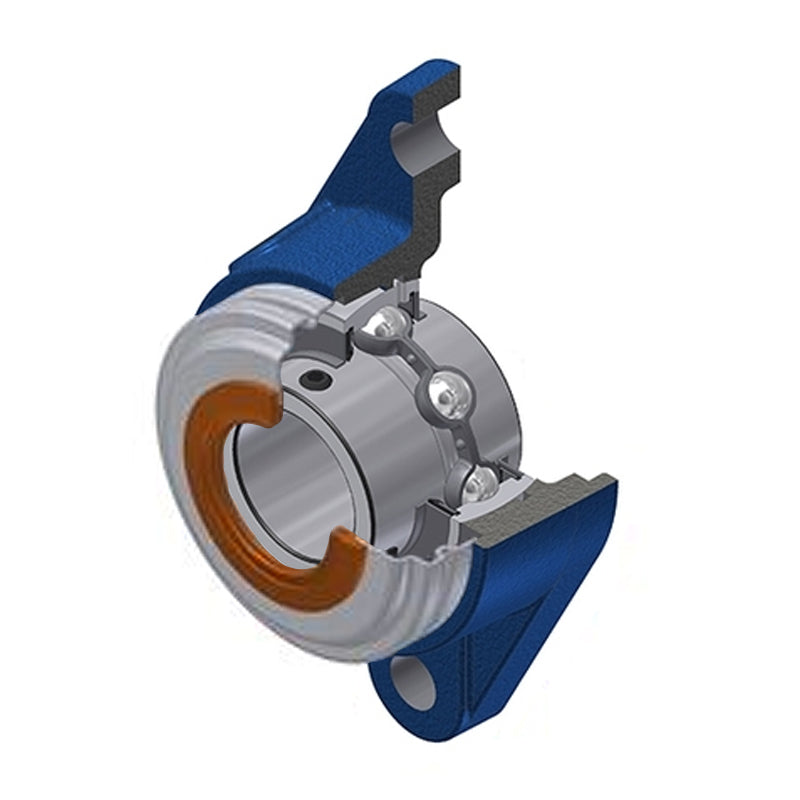

• SNR UCFLE205-15CC Imperial Two Bolt Oval Cast Iron Flange Housing with 15/16 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: UCFLE205-15CC-SNR

SNR UCFLE205-15CC Imperial Two Bolt Oval Cast Iron Flange Housing with 15/16 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCFLE205-15CC Imperial Two Bolt Oval Cast Iron Flange Housing with 15/16 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
$73.62 ex VAT
$73.62 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.85
4+ $52.63
9+ $51.52
19+ $49.86
49+ $48.75
99+ $45.98
499+ $38.78
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
23.81mm = 0.937 (15/16) inch
Style:
UCFLE
Bolt Hole Centres:
99mm
Technical
--- Dimensions
Shaft diameter d 15/16 inch
A 29.3mm
A1 11mm
A2 38.7mm
B 34mm
e 19mm
H 124mm
J 99mm
L 70mm
N 11.5mm
S 14.3mm
Dz 60mm
Z 42mm
G R1/8″
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 3.7 Nm
Mass 0.61 kg
