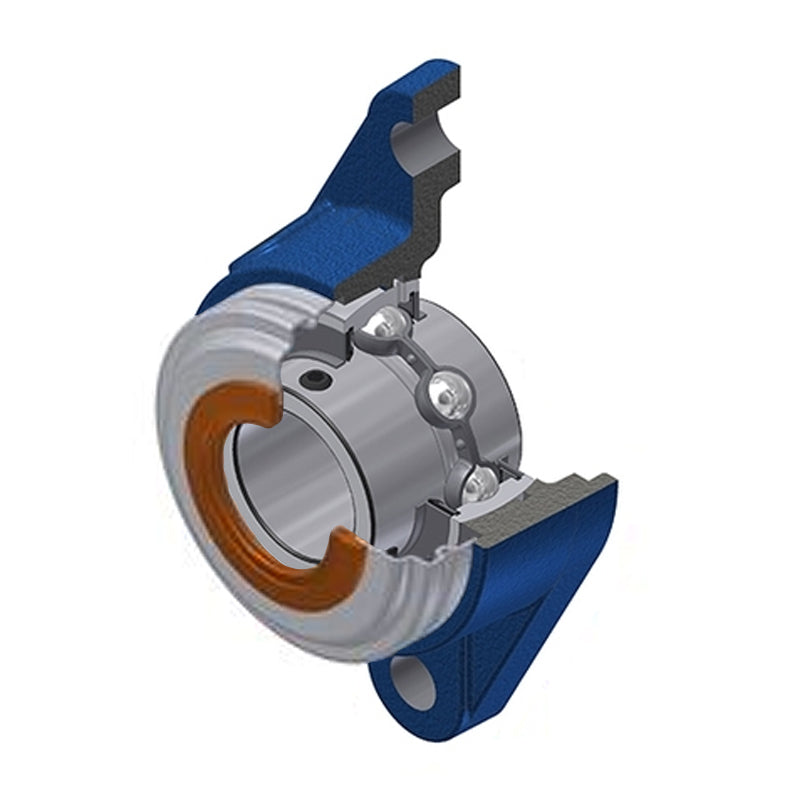

• SNR UCFLE205CO Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: UCFLE205CO-SNR

SNR UCFLE205CO Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCFLE205CO Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
$73.59 ex VAT
$73.59 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.83
4+ $52.61
9+ $51.50
19+ $49.84
49+ $48.73
99+ $45.97
499+ $38.77
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
UCFLE
Bolt Hole Centres:
99mm
Technical
--- Dimensions
Shaft diameter d 25mm
A 29.3mm
A1 11mm
A2 38.7mm
B 34mm
e 19mm
H 124mm
J 99mm
L 70mm
N 11.5mm
S 14.3mm
Dz 60mm
Z 42mm
G R1/8″
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.644 kg
