• SNR UCFLE206CC Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: UCFLE206CC-SNR

SNR UCFLE206CC Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCFLE206CC Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
$73.61 ex VAT
$73.61 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.84
4+ $52.62
9+ $51.51
19+ $49.85
49+ $48.74
99+ $45.97
499+ $38.77
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

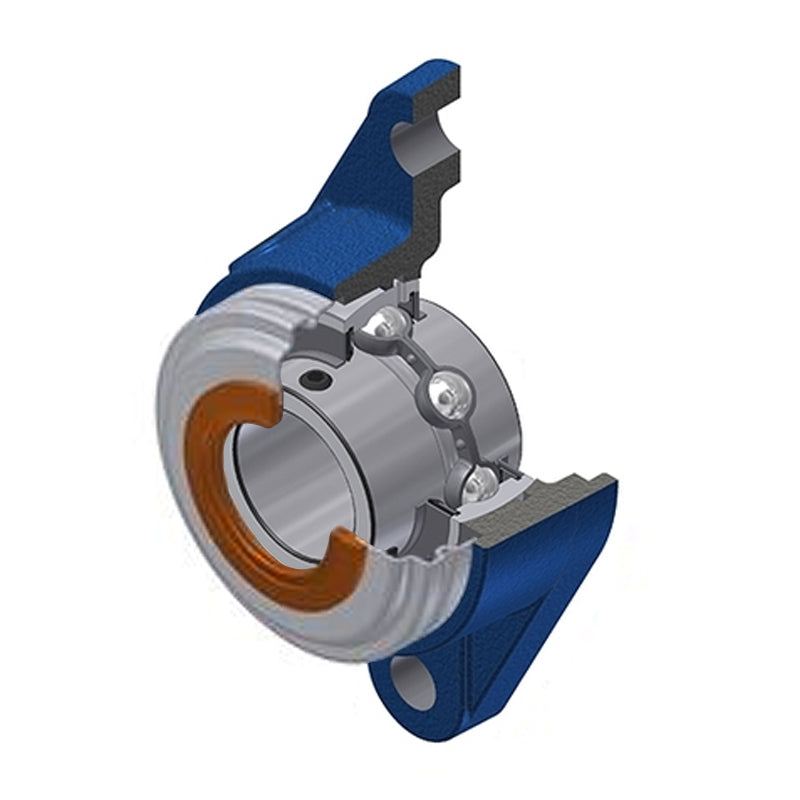

UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
UCFLE
Bolt Hole Centres:
116.5mm
Technical
--- Dimensions
Shaft diameter d 30mm
A 32.1mm
A1 12mm
A2 42.2mm
B 38.1mm
e 20mm
H 142mm
J 116.5mm
L 80mm
N 11.5mm
S 15.9mm
Dz 70mm
Z 46.3mm
G R1/8″
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.82 kg
