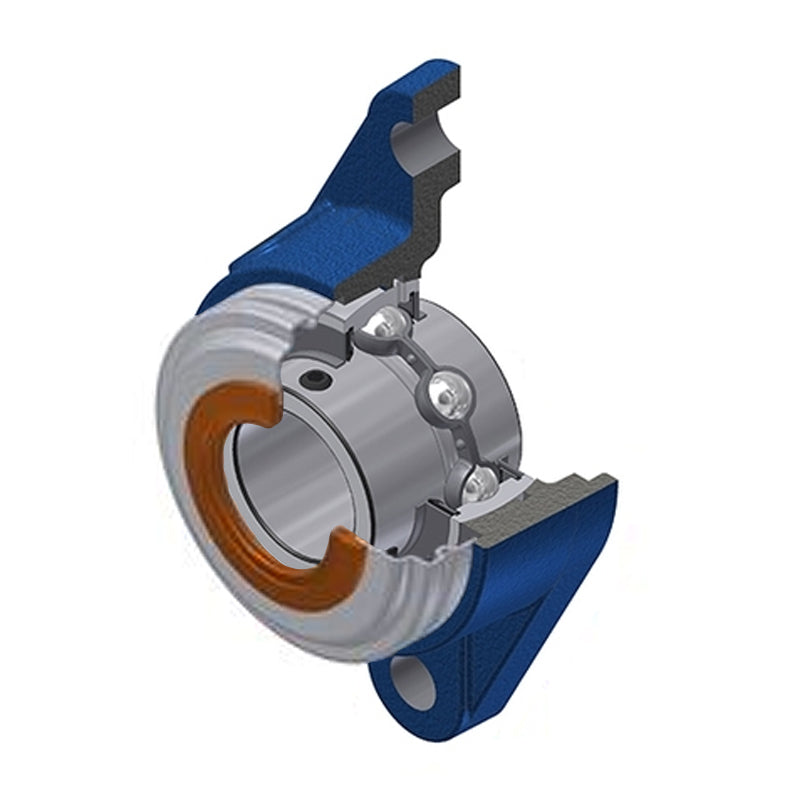

• SNR UCFLE207CC Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: UCFLE207CC-SNR

SNR UCFLE207CC Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCFLE207CC Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
$88.25 ex VAT
$88.25 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.75
4+ $63.09
9+ $61.76
19+ $59.77
49+ $58.44
99+ $55.12
499+ $46.49
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
UCFLE
Bolt Hole Centres:
130mm
Technical
--- Dimensions
Shaft diameter d 35mm
A 33.7mm
A1 12.5mm
A2 46.4mm
B 42.9mm
e 21mm
H 155mm
J 130mm
L 92mm
N 14mm
S 17.5mm
Dz 80mm
Z 49.6mm
G R1/8″
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.17 kg
