SKU: UCFLE208-24N-SNR

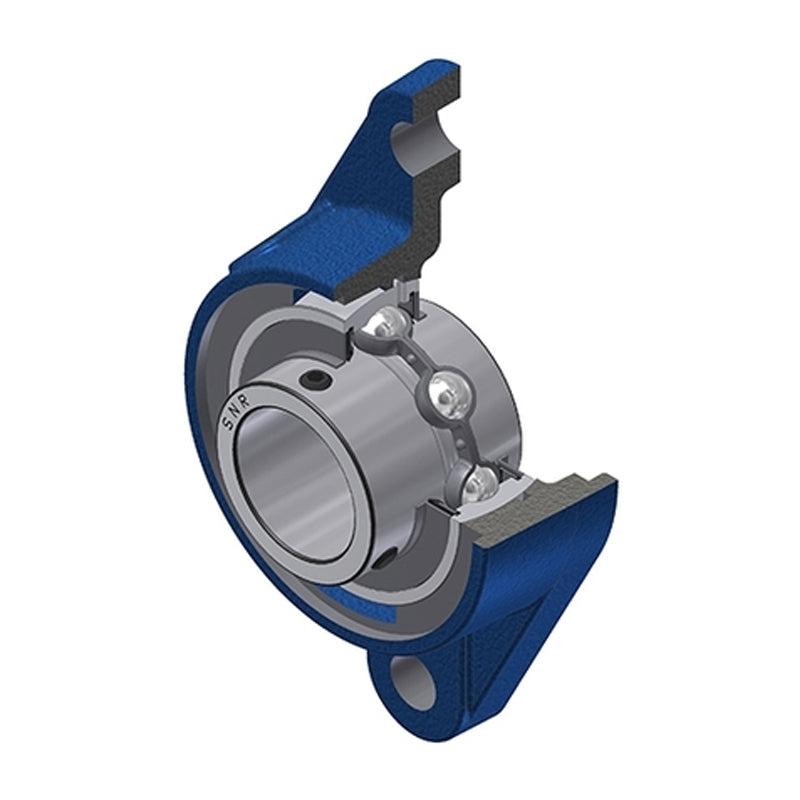

SNR UCFLE208-24N Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/2 inch Bore Insert - Allow 2-3 Days
SNR UCFLE208-24N Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/2 inch Bore Insert - Allow 2-3 Days
Regular price
$58.88
ex VAT
Regular price
Sale price
$58.88
ex VAT
In stock
Price Break
3+
$43.87
4+
$42.09
9+
$41.21
19+
$39.88
49+
$38.99
99+
$36.78
499+
$31.02
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UCFLE
- Bolt Hole Centres:
- 143.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-1/2 inch |
| A | 37.5mm |
| A1 | 13mm |
| A2 | 54.2mm |
| B | 49.2mm |
| e | 24mm |
| H | 172mm |
| J | 143.5mm |
| L | 105mm |
| N | 14mm |
| S | 19mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 8 Nm |
| Mass | 1.68 kg |
